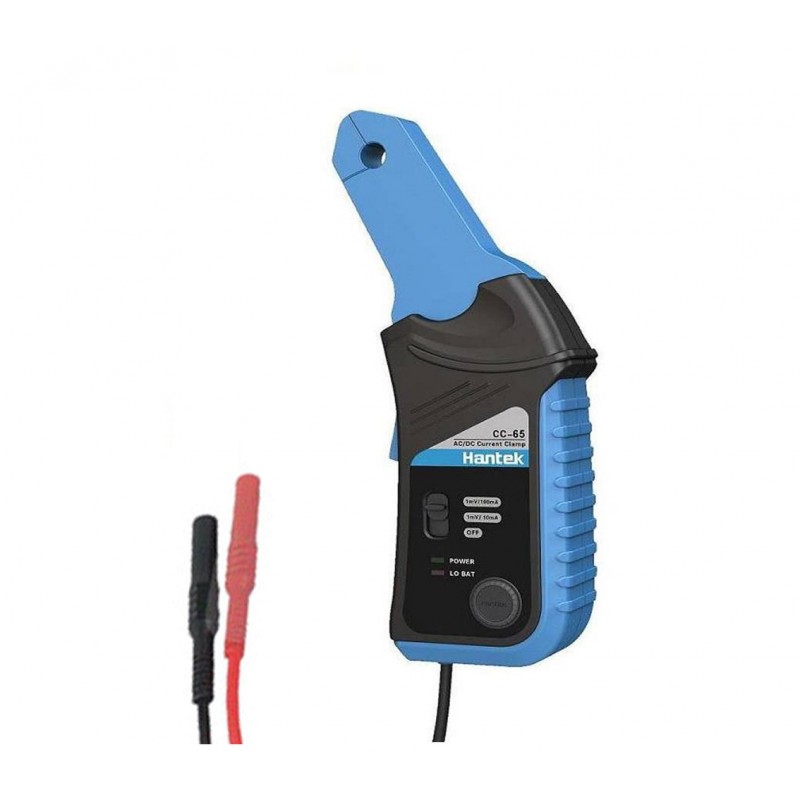

Hantek CC65 - Pince ampèremètre DC / AC 65A (Banana)
  • Hantek CC65 - Pince ampèremètre DC / AC 65A (Banana)

Hantek CC65 - Pince ampèremètre DC / AC 65A (Banana)

87.67 €

Pince ampèremétrique, AC / DC, bande passante 20kHz.
Portée maximale 65A, 1mV / 10mA.
Il a bouton d'étalonnage et réinitialiser.
Valable pour oscilloscope ou multimètre.
Il permet de visualiser des formes d’intensité dans un oscilloscope ou d’obtenir des valeurs numériques dans un multimètre.
Version avec connecteur Banana.

Quantité
CONSULTER

HANTEK CC-65

Pince ampèremètre DC / AC 65A

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A

Features

AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

Application

Power circuit measurement and malfunction analysis.
Motor drive of frequency converter (or other electronics) measurement.
Power electronics equipments measurement.

Specifications

DCA Range 1 mV /10mA ±(1.5%±5mA) 10mA ~ 20A
1mV/100mA ±(2%±20mA) 100mA ~ 40A;
±(4%±0.3A) 40A ~ 65A
ACA Range 1mV/10mA ±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz);
±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz);
±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz);
±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA ±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz);
±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz);
±(6%±30mA) 200mA ~ 40A (2KHz ~ 5KHz);
±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size 9mm maximum
Low Battery Indictor red LED lighting
Operating Temperature 0℃to 50℃70% R.H.
Storage Temperature -20℃ to +70℃, 80% R.H.
Battery Type 9V DC, NEDA 1604, 6F22,0006P
Battery Life 100 hours typical with alkaline
Weight 250 gm typical
Dimensions 195mm(H) x 70mm(W) x 33mm(D)
Output Supplied with coil cable with BNC plug.
CC65
