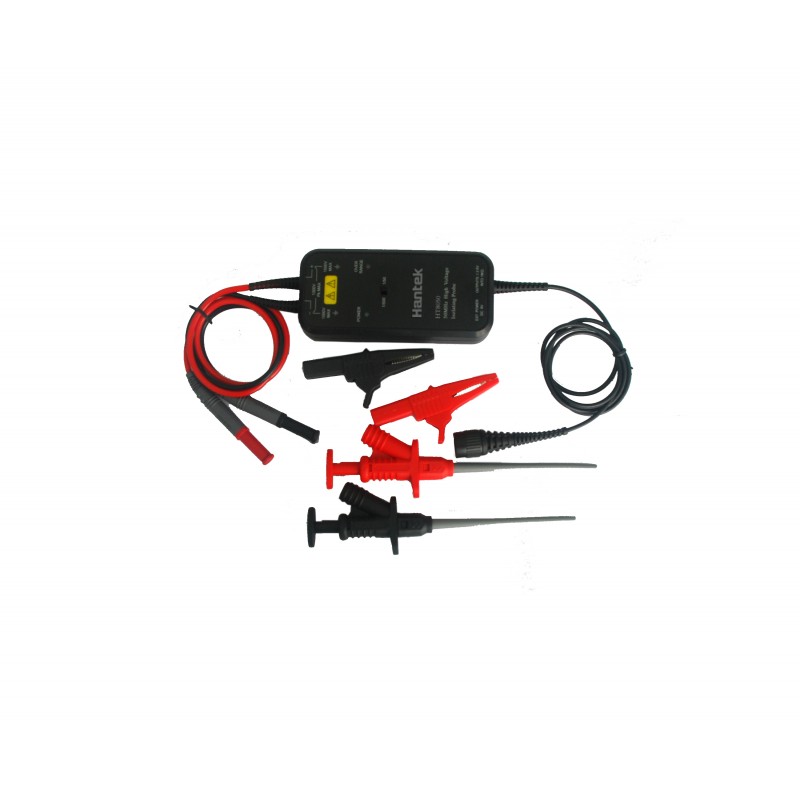

Hantek HT8050 - Sonde isolée haute tension
233.99 €
280,79 € TVA INCLUSE
Sonde isolée haute tension.
Atténuation, 1/50 et 1/500.
Gamme 130V (DC + peakAC) ou 1300V (DC + peakAC).
HANTEK HT8050
Sonde isolée haute tension
HT8000 Series high voltage isolated probe adopts the differential input mode. It's mainly used in the place that needs high voltage isolation measurement.
Two options of attenuation, 1/50 and 1/500. The difference module measurement range is 130V (DC+peakAC) and 1300V (DC+peakAC).
Over range warning function, indicates by red LED light.
Small and nice appearance, firm and durable structure, good stability, reliability and accuracy.
| Electrical Performance | ||
| Model Number | HT8050 | HT8100 |
| Bandwidth（-3dB） | 50MHz | 100MHz |
| Rise time | 7ns | 3.5ns |
| Accuracy | ±2% | |
| Attenuation Ratio | 1/50，1/500 | |
| Imput Impedance | Single-ended to ground：4MΩ Between two imput ends：8MΩ |
|
| Imput Capacitance | Single-ended to ground：7pF Between two imput ends：3.5pF |
|
| Maximum Difference Measurement Voltage | 1/50:130V(DC+peakAC) 1/500:1300V(DC+peakAC) |
|
| Maximum Common Mode Input Voltage | 1000Vrms，CATII 600Vrms，CATIII |
|
| Noise | 1/50:≤1.5mVrms 1/500:≤1mVrms |
|
| Linearity | ±1% | |
| Delay Time | 20ns±1ns | |
| CMRR | DC：≥80dB 100Hz：≥60dB 1MHz：≥50dB |
|
| Over Range Warning Voltage Threshold |
1/50:140V±4V(DC+peakAC) 1/500:1400V±40V(DC+peakAC) |
|
| Power Adapter Output Power |
DC9V,1000mA | |
| Power Adapter Input Power |
AC100-240V，50-60Hz | |
| Machinery Specification | ||
| Length of Input Cable | About 60cm | About 30cm |
| Length of Output Cable | About 90cm | |
| Gator Clip | About 85*40*13（mm） | |
| Finger Pin | About 160*45*13（mm） | |
| Probe Body | 120*55*24（mm） | |
| Weight | 160g | |
| Environmental Characteristics | ||
| Working Temperature | 0-40℃ | |
| Storage Temperature | ﹣10-45℃ | |
| Working Humidity | 85%RH | |
| Storage Humidity | 90%RH | |
| Working Altitude | 3000m | |
| Storage Altitude | 12000m | |
HT8050
