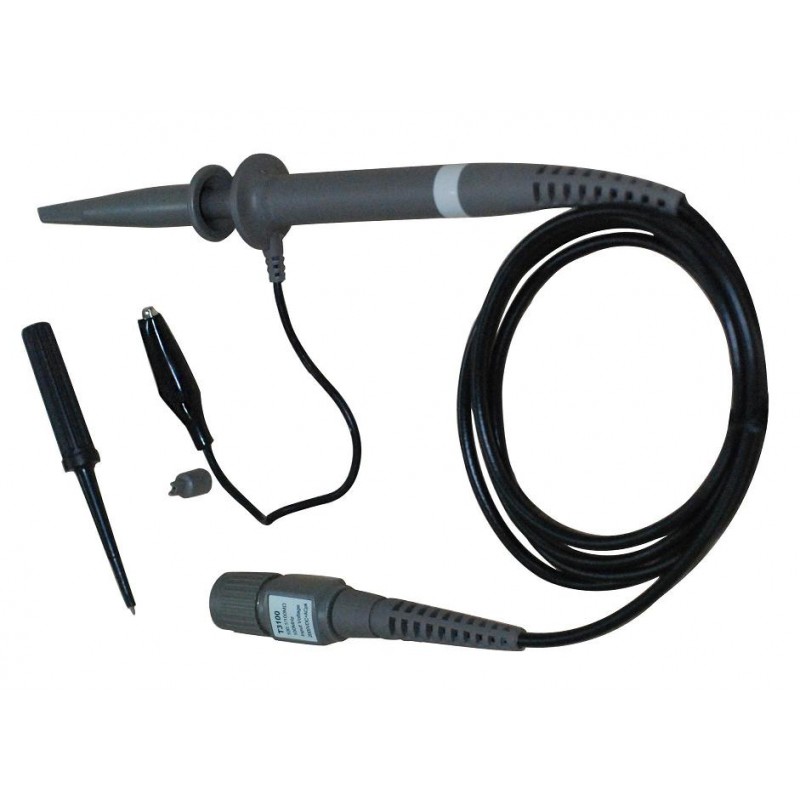

Hantek T3100 - Sonde oscilloscope atténuation x100
38.06 €
45,67 € TVA INCLUSE
Sonde oscilloscope.
Atténuation: 100: 1.
Résistance d'entrée: 100 M ohms.
Bande passante: DC-100MHz.
Tension d'entrée: 2000VDC + ACpk
HANTEK T3100
Sonde oscilloscope atténuation x100
1.Specifications
| Model | T3100 |
| Attenuation | 1: 100 |
| Input Resistance | 100MΩ |
| Input Capacitance | X100: 14.5pF~17.5pF |
| Compensation Range | 15pF~35pF |
| System Bandwidth | DC~100MHz |
| Maximum Working Input Voltage | X100: < 2000VDC+Peak AC |
| Net Weight | <65g |
| Cable Length | 120cm |
| Temperature Operating Non operating | -10℃ --+50℃ -20℃-+75℃ |
| Humidity | ≤ 85% ( Relative Humidity) |
T3100
