Hantek HDP1160V4S Alimentation 160V / 4A (180W)
254.23 €
305,08 € TVA INCLUSE
Alimentation variable courant et tension 160V / 4A (Jusqu'à 180w).
Affichage à quatre chiffres, résolution jusqu'à 10mV/1mA.
Fonction de charge rapide USB standard, prend en charge une variété de protocoles de charge rapide.
Fonctions de stockage jusqu'à 10 groupes.
Port série entièrement isolé, prise en charge logicielle du contrôle d'alimentation multi-alimentation, système de mesure et de contrôle ou de vieillissement facile à régler.
Fonctions de protection contre les surtensions, les surintensités, les surcharges, les surchauffes et les courts-circuits.
Commande de sortie marche/arrêt, fonction de verrouillage du clavier.
ALIMENTATIONS DE LABORATOIRE
SÉRIE HANTEK HDP10000
- Four digit display voltage and current, resolution up to 10mV/1mA.
- Standard USB quick charging function (5-12V output), supporting a variety of quick charging protocols.
- 10 groups of data storage/retrieval functions.
- Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;
- Over voltage, over current, overload, overheating, short circuit protection functions.
- Low noise temperature control fan, quiet and durable.
- On/Off output control, one-key panel lock function to prevent misoperation.
- Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit.
- Two-stage adjustment topology, no impact on the load when the power is turned on.
- Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.
Small size, high power, full protection
Ultra-thin body, abundant power, stable performance. Over voltage, over current, overload, overheating, short circuit protection functions. Constant voltage (CV)/ constant current (CC) automatic switch. It can be used as constant voltage source or constant current source.

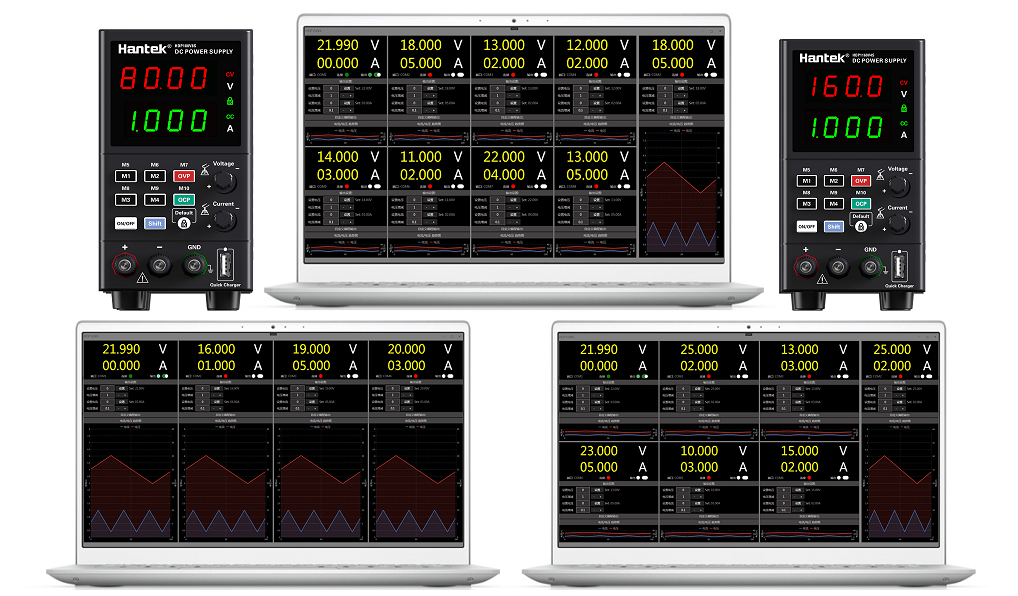

Support computer control, multi-machine linkage
Fully isolated serial port, software support multiple power supply control at the same time, Easy to set up measurement and control or aging system; 10 groups of data storage/retrieval functions.

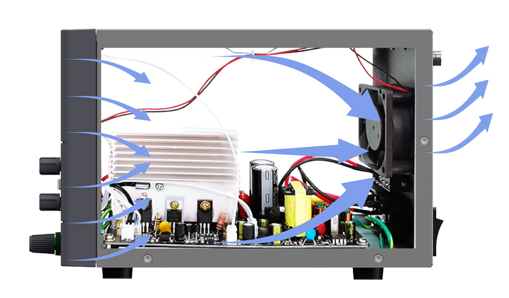

Intelligent cooling system
Low noise temperature control fan, quiet and durable. Reasonable cooling air duct design, all-weather full load work without burning machine, more lasting work. 230V/115V switchable input, universal.

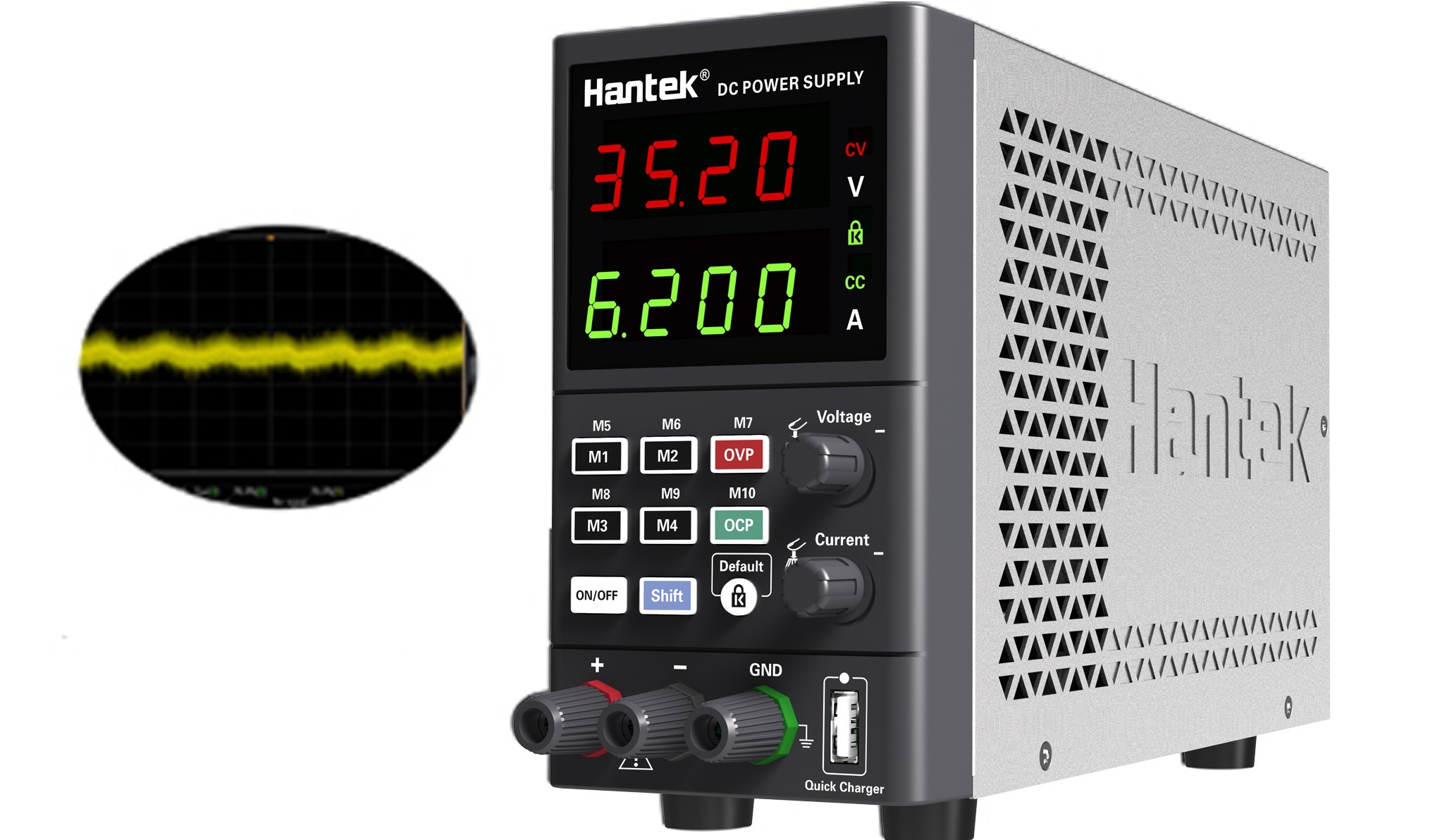

Low ripple, low noise
10mVrms Low ripple low noise.
10mV/1mA reading resolution, high voltage/current output accuracy.
10mV/1mA reading resolution, high voltage/current output accuracy.

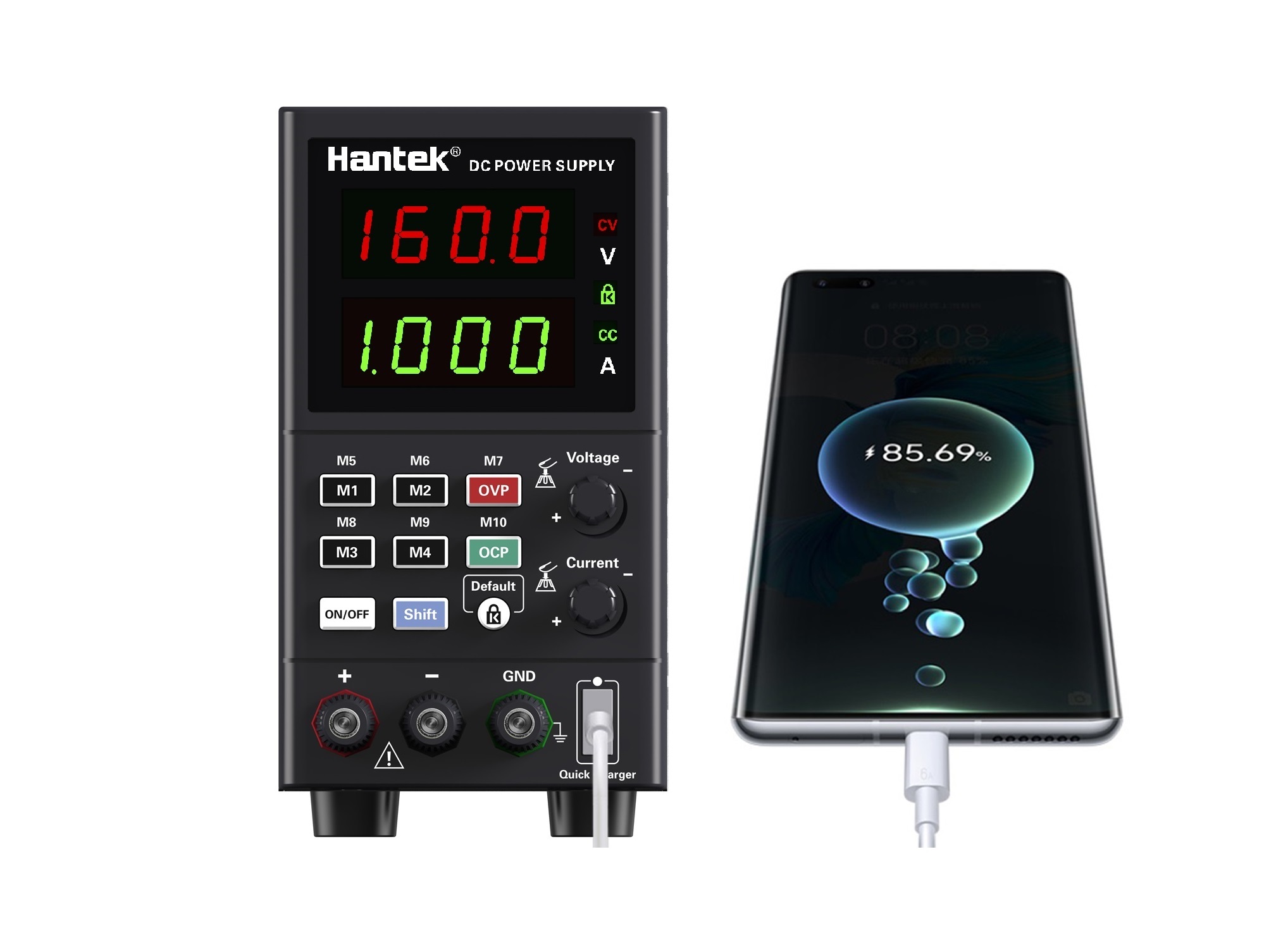

USB quick charging function
Automatic recognition of fast charging protocol and adjustment of output voltage and current. 5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power. DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick.
| Output rating | Model | Output voltage | Output current | RS232 | The AC input |
| 180W | HDP1160V4S | 0-160V | 0-4A | X | 120 Vac +/- 10% 220 Vac +/- 10% |
| 180W | HDP180V8S | 0-80V | 0-8A | X | 120 Vac +/- 10% 220 Vac +/- 10% |
|
Output rating
|
Model | Output voltage | Output current | RS232 | The AC input |
| 210W | HDP135V6 | 0-35V | 0-6A | - | 120 Vac +/- 10% 220 Vac +/- 10% |
| 210W | HDP135V6A | 0-35V | 0-6A | - | 220 Vac +/- 10% |
| 210W | HDP135V6B | 0-35V | 0-6A | - | 120 Vac +/-10% |
| 210W | HDP135V6S | 0-35V | 0-6A | X | 120 Vac +/- 10% 220 Vac +/- 10% |
HDP1160V4S
Fiche technique
- Serie
- HDP10000
- Tension maximale (V)
- 160
- Courant maximal (I)
- 4
- Port série
- Oui
- Nombre de sorties
- 1
