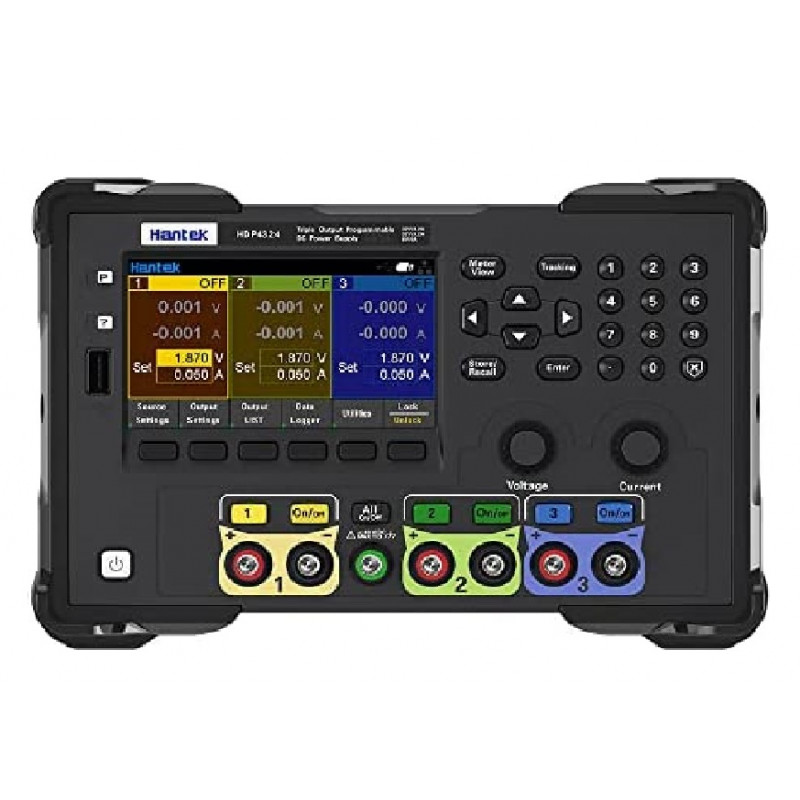

Hantek HDP4324B Alimentation Linéaire 3 Canaux 32/32/8V (245W)
843.2 €
Alimentation réglable CC linéaire programmable.
3 canaux réglables en tension et courant (respectivement 32/32/8V et jusqu'à 3.2/3.2/5A)
Puissance de sortie 245 W, réponse transitoire ≤ 50 μs.
Écran couleur de 4,3", affichage en temps réel de la tension/du courant/de la valeur de puissance et de la trace de la forme d'onde.
Haute résolution de 1 mV/1 mA, < 350 μVrms/2 mVpp et faible bruit d'ondulation.
Canaux électriquement isolés et réglables.
Protection contre les surtensions, les surintensités, les surchauffes et les courts-circuits.
Sortie de temporisation et de retard, tension constante, fonction de courant constant
4 modes de fonctionnement : SÉRIE, PARALLÈLE, INDÉPENDANT ET SUIVI.
Interfaces : USB HOST, USB DEVICE, interface E/S numérique, LAN, RS232/485.
ALIMENTATIONS DE LABORATOIRE
SÉRIE HANTEK HDP4000
- Four-channel programmable linear DC regulated power supply, 245W output power, electrical isolation between channels, four channels continuously adjustable.
- 4.3-inch color display, real-time display voltage/current/power values and waveform, which makes the output status and trend clear at a glance.
- High resolution: 1 mV, 1 mA.
- Low ripple noise: < 350 μVrms / 2 mVpp.
- Transient response time: ≤50μs.
- Over voltage/over current/over temperature/short circuit protection functions. The over voltage and over current parameters can be flexibly set to achieve effective load protection.
- Intelligent temperature control fan automatically adjusts the speed, effectively reducing fan noise.
- The use of color and numeric identifiers makes it easy for users to identify information relevant to the output of a particular channel.
- Provide 10 groups of storage for sequence/delay/record/panel condition settings.
- List function. By editing the single-step voltage, current, time, list function can generate a variety of complex sequences to meet the complicated test requirements.
- Recorder function. The recorder can record the output voltage, current and power, and display them by graph.
- Keyboard lock function to prevent misoperation.
- Support SCPI remote command control.
- Support U disk (FAT32 format, Flash) storage, one-click screenshot and data recording function.
- Standard configuration ports: USB HOST, USB DEVICE, LAN, digital I/O interface, RS232/RS485 (HDP4324B/HDP4424B), GPIB (HDP4324H/HDP4424H).
Excellent industrial design
A perfect combination of art and technology. Not only beautiful and fashionable, but also durable, accurate and stable.
4.3-inch color display
The set values and actual output values of the four channels are displayed on the same screen which makes users clear at a glance. Built-in VAW value and waveform display make the change trend all in control.
List and data recording functions
The list and data recording functions generate a variety of complex sequences by editing the single-step voltage, current and time to meet the complex test requirements, and record the actual voltage, current and power data of each step through the data recording function, and also generate waveform diagrams.
Low ripple noise, low load regulation rate, fast transient response
Low ripple noise: < 350 μVrms / 2 mVpp, meets the demand of high purity power supply. Low load regulation rate: Voltage: ≤0.01% + 2mV, current: ≤0.01% + 250μA, calmly copes with the change of load. Fast transient response time: ≤50μs, meets the needs of rapid voltage change.
Over voltage, over current, over temperature protection functions
Provides the overvoltage and overcurrent protection functions. You can flexibly set the overvoltage and overcurrent parameters to effectively protect loads.
Four modes: independent, series, parallel, tracking
The series and parallel functions can combine two power supplies into one power supply to obtain double voltage or current, expanding the applicable range and flexibility of the power supply.
Rich interface configurations
USB HOST, USB DEVICE, LAN, 4-line digital I/O interface; RS232/RS485 (HDP4324B/HDP4424B); GPIB (HDP4324H/HDP4424H); Support U disk (FAT32 format, Flash) storage; Support SCPI remote command control.
Convenient computer connection
Plug and play, safe and stable, provide free secondary development instructions, making it easy to form an automatic test system.
| Model | Channel | Total power | Output | Resolution | Noise | Load regulation rate | Power regulation rate | Screen | Standard interface |
| HDP4324 | 3CH | 245W | 32V/ 3.2A, 32V/3.2A, 8V/5A | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
4.3 inch TFT | USB HOST, USB DEVICE, Digital I/O, LAN |
| HDP4324B | 3CH | 245W | 32V/ 3.2A, 32V/3.2A, 8V/5A | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
4.3 inch TFT | USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485 |
| HDP4424 | 4CH | 245W | 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
4.3 inch TFT | USB HOST, USB DEVICE, Digital I/O, LAN |
| HDP4424B | 4CH | 245W | 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A | 1 mV, 1 mA | <350μVrms / 2mVpp | Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
Voltage:≤0.01% + 2mV; Current:≤0.01% + 250μA; |
4.3 inch TFT | USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485 |
| Dc output (0℃ ~ 40℃) | |||||
| Channel | voltage | current | |||
| HDP43XX | CH1 | 32V | 3.2 A | ||
| CH2 | 32V | 3.2 A | |||
| CH3 | 8V | 5A | |||
| HDP44XX | CH1 | 32V | 3.2 A | ||
| CH2 | 32V | 3.2 A | |||
| CH3 | 8V | 2A | |||
| CH4 | 16V | 1.5 A | |||
| Series-parallel output | |||||
| Channel | Series | parallel | |||
| HDP43XX | CH1 | 64 v, 3.2 A | 32 v, 6.4 A | ||
| CH2 | |||||
| CH3 | - | - | |||
| HDP44XX | CH1 | 64 v, 3.2 A | 32 v, 6.4 A | ||
| CH2 | |||||
| CH3 | - | - | |||
| CH4 | - | - | |||
| Load regulation rate ± (output percentage + bias) | |||||
| Voltage | < 0.01% + 2 mV | ||||
| Current | < 0.01% + 250 μA | ||||
| Linear regulation rate ± (output percentage + bias) | |||||
| Voltage | < 0.01% + 2 mV | ||||
| Current | < 0.01% + 250 μA | ||||
| Ripple and noise (20Hz ~ 20MHz) | |||||
| Norm voltage | < 350 μVrms/ 2 mVpp | ||||
| Accuracy (25℃±5℃) ± (output percentage + bias) | |||||
| Channel | programming | read-back | |||
| voltage | current | voltage | current | ||
| HDP43XX | CH1 | 0.05% + 10 mV | 0.2% + 5 mA | 0.05% + 10 mV | 0.2% + 5 mA |
| CH2 | |||||
| CH3 | 0.1% + 5 mV | 0.1% + 10 mA | 0.1% + 5 mV | 0.1% + 10 mA | |
| HDP44XX | CH1 | 0.05% + 10 mV | 0.2% + 5 mA | 0.05% + 10 mV | 0.2% + 5 mA |
| CH2 | |||||
| CH3 | 0.1% + 5 mV | 0.1% + 10 mA | 0.1% + 5 mV | 0.1% + 10 mA | |
| CH4 | |||||
| Transient response time | |||||
| The time for the output current changing from full load to half load, or from half load to full load, and the output voltage returning to 15mV is less than 50μs. | |||||
| Machinery | |||||
| Size | 232*153*392 mm | ||||
| Weight | HDP43XX | 9.15 Kg | |||
| HDP44XX | 9.45 Kg | ||||
| Power supply | |||||
| Ac input (50Hz to 60Hz) | 100Vac±10%, 115Vac±10%, 230Vac±10% (Max. 250Vac) | ||||
| Maximum input power | 600VA | ||||
| Environment | |||||
| Cooling method | Air cooling | ||||
| Working temperature | 0 ℃ to 50 ℃ | ||||
| Storage temperature | - 40 ℃ ~ 70 ℃ | ||||
| Humidity | 0℃ to 30℃ : ≤95% relative humidity | ||||
| 30℃ to 40℃ : ≤75% relative humidity | |||||
| 40 ° C to 50 ° C: ≤45% relative humidity | |||||
| Altitude | Below 3000 metres | ||||
HDP4324B
Fiche technique
- Serie
- HDP4000
- Tension maximale (V)
- 32/32/8V
- Courant maximal (I)
- 3.2/3.2/5A (245w)
- Port série
- Oui
- Nombre de sorties
- 3
