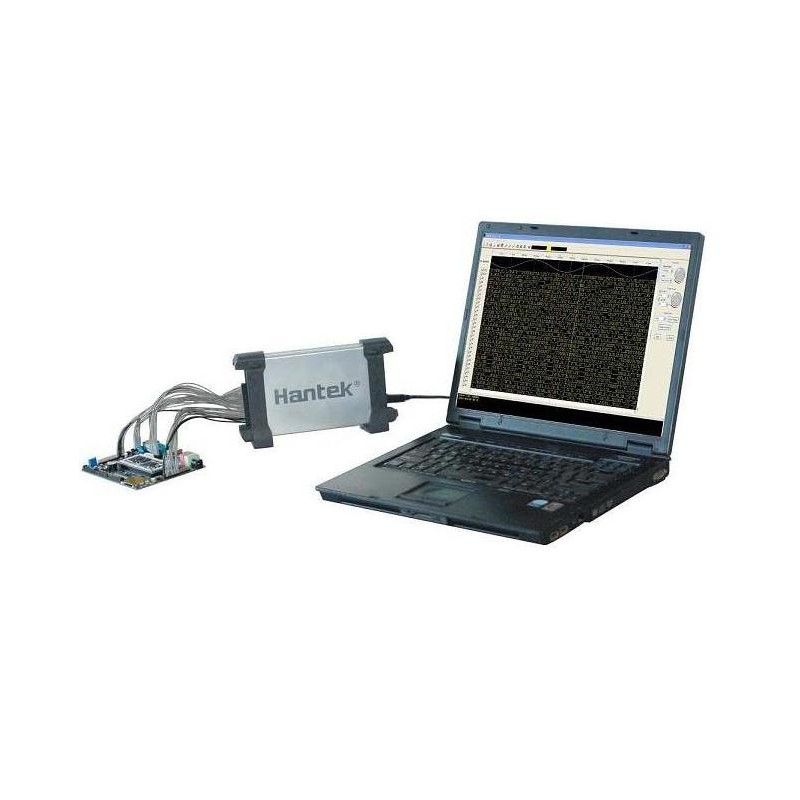

Hantek 4032L Analyseur Logique / 32 canaux
235.36 €
282,43 € TVA INCLUSE
Hantek4032L combine la fonction d'analyseur logique, d'analyseur de bus et de sonde logique dans un seul appareil.
Il convient au développement, au test, à l'analyse et au débogage de circuits numériques de toutes sortes, en tant qu'outil essentiel pour le développement de produits électroniques, de l'enseignement ou de la recherche.
Il a une profondeur de mémoire de 2 Gbits (DDR2), un taux d'échantillonnage de 400 MSa / s et une bande passante de 150 MHz qui le rendent parfaitement adapté aux applications les plus exigeantes.
Hantek 4032L Analyseur Logique
- Hantek4032L combines the function of logic analyzer, bus analyzer, and logic probe etc. in one.
- It's suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics
development & electronic measuring engineers, and teaching and research work at college. - It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
- The innovative trigger mode and new analysis measurement tool make your measurement simple and efficient.
- It can set edge, level, bus, data width etc. Trigger mode, easy to use.
- Its innovative data analysis function makes your analyze UART, SPI, and I2C etc. data more easy and relax.
- The strong protocol secondary analytic capability is able to export files in CSV, TXT, DOC format, which facilitate
- Secondary analysis with other tools.
- Excellent industrial design, similar interface to digital storage oscilloscope, easy to use.
| Channel | 32 |
| Input Impedance | 200K(C=10p) |
| Input Voltage Range | -6V~60V |
| Voltage Threshold Range | -6V~6V |
| Max. Sample Rate | 400MHz |
| Max. Input Signal Bandwidth | 150MHz |
| Min Time Resolution | 2.5ns |
| Sample Depth | 64M Sample |
| Memory Depth | 2G bits |
| Compatible Input | TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA |
| Electrostatic Protected Area | 15KV |
| Interface | USB Port |
| Voltage Range | 4.5V~5.5V |
| Power | Max. 3.5W |
| Temperature Range | Operation: -10°C~60°C; Storage: -40°C~60°C |
| Operating System | WinXP/2000/Win7/Win8/Win10 |
| Size&Weight | 207(D) x 37(H) x 123(W) mm, about 390g |
4032L
Fiche technique
- Analyseur logique
- Oui
