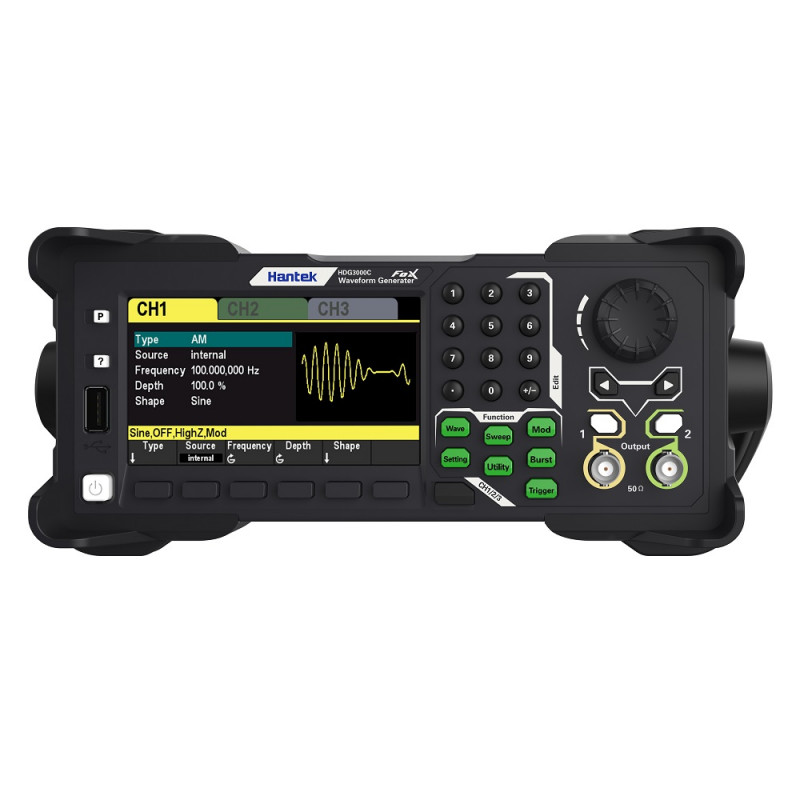

Hantek HDG3103C Générateur de signaux arbitraires / Fonctions 100MHZ / 3 Canaux
597.39 €
716,87 € TVA INCLUSE
Gamme de fréquence : CH1 et CH2 : 1 μHz ~ 100 MHz ; CH3 : 1μHz ~ 20MHz.
5 en 1 : générateur de formes d'onde arbitraires, générateur d'impulsions, générateur de fonctions, générateur d'harmoniques et fréquencemètre.
La technologie DDS (synthétiseur numérique direct) peut générer un signal de sortie stable, pur et à faible distorsion.
Permet le contrôle depuis le PC.
GÉNÉRATEURS DE SIGNAUX / FONCTIONS
SÉRIE HANTEK HDP3000C
HDG3000C sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.
- Frequency range (Depending on model): CH1&CH2: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz;CH3:1μHz ~ 20MHz.
- Up to 300MSa/s sampling rate, no distortion of analog waveforms.
- 16-bit vertical resolution ensures the accuracy of waveform amplitude.
- The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
- A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
- Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
- 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
- Built-in 80MHz high-resolution frequency meter.
- Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
- More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
- Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
Equip with the sine wave with the maximum output bandwidth
Frequency range (Depending on model): 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the square wave with the maximum output bandwidth
Frequency range (Depending on model): 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the triangle wave with the maximum output bandwidth
Frequency range (Depending on model): 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°; Adjustable symmetry: 0%~100%.
Equip with more than 160 kinds of arbitrary waveform output.
Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160 kinds of arbitrary signals.
Equip with dual channel output modulation waveform AM/FM.
Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
Equip with dual channel output burst function.
Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi cycle, infinite cycle, and gated.
Equip with an 80MHz frequency meter.
The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters of the external input signal.
Model | Channels | Max Output Frequency | Max Sampling Rate | Vertical Resolution | Waveform Length | Interface | Mark |
HDG3023C | 3CH | 25MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | Only for CH1/CH2, please refer to the detailed specification of CH3 in the manual |
HDG3043C | 3CH | 40MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | |
HDG3063C | 3CH | 60MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | |
HDG3083C | 3CH | 80MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | |
HDG3103C | 3CH | 100MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device |
Model | HDG3103C | HDG3083C | HDG3063C | HDG3043C | HDG3023C |
Channel | 3 | ||||
Wavelength | 2M | ||||
Frequency range | 100MHz | 80MHz | 60MHz | 40MHz | 25MHz |
Sampling rate | 300MSa/s | ||||
Voltage resolution | 16Bits | ||||
Waveform(CH1&CH2) | |||||
Standard waveform output | sine wave, square wave, triangular wave, pulse wave, noise, harmonics | ||||
Arbitrary waveform output | 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc | ||||
Frequency property | |||||
Sine wave | 1 μHz ~ 100 MHZ | 1 μHz ~ 80 MHZ | 1 μHz ~ 60 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 25 MHZ |
Square wave | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Pulse wave | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Triangle wave | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ |
Harmonic | 1 μHz ~ 50 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 30 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 10 MHZ |
Noise (3 db) | 100 MHZ bandwidth | ||||
Arbitrary wave | 1 μHz ~ 20 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Resolution | 1μHz | ||||
Precision | ±1ppm, 18~28℃ | ||||
Square wave property | |||||
Rise/Fall time | Typical (1kHz, 1Vpp) | ||||
≤9ns | |||||
Overshoot | Typical (100kHz, 1Vpp) | ||||
≤5% | |||||
Duty cycle | 0.001% ~ 99.999%; | ||||
The range varies with the frequency | |||||
Asymmetry | 1% of the period plus 4ns | ||||
Triangular wave property | |||||
Linear | ≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%) | ||||
Symmetry | 0% ~ 100% | ||||
Impulse wave property | |||||
Cycle | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms |
Pulse | ≥16ns | ≥16ns | ≥16ns | ≥16ns | ≥16ns |
Rise/Fall time | ≥9ns (limited by current frequency setting and pulse width setting) | ||||
Overshoot | Typical (1kHz, 1Vpp) | ||||
≤5% | |||||
Arbitrary wave property | |||||
Wavelength | 2M | ||||
Vertical resolution | 16 Bits | ||||
Sampling rate | 1μSa/s~62.5 MSa /s, 1μSa/s resolution | ||||
Time of rise/fall | Ns of 9 or higher | ||||
Overshoot | Typical (1Vpp) | ||||
≤5% | |||||
Harmonic property | |||||
Harmonic frequency | ≤16 | ||||
Harmonic type | Even harmonics, odd harmonics, all harmonics | ||||
Harmonic amplitude | All harmonic amplitude can be set. | ||||
Harmonic phase | All harmonic amplitude can be set. | ||||
Amplitude property (50Ω terminal) | |||||
Amplitude range | ≤10MHz: 1mVpp ~ 10Vpp; | ||||
≤40MHz: 1mVpp ~ 5.5Vpp; | |||||
≤60MHz: 1mVpp ~ 4Vpp; | |||||
≤80MHz:1mVpp ~ 2Vpp; | |||||
≤100MHz:1mVpp ~ 1.5Vpp; | |||||
Precision | Typical (1kHz sine wave, 0V offset, > 10mVPP) | ||||
± 1% setting value ± 5mVpp | |||||
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω) | ≤5MHz: ±0.1dB; | ||||
≤15MHz: ±0.2dB; | |||||
≤25MHz: ±0.3dB | |||||
≤40MHz: ±0.5dB | |||||
≤60MHz: ±1.0dB | |||||
Unit | Vpp, mVpp, Vrms, dBm(50Ω impedance) | ||||
Resolution | 1mVpp | ||||
Offset property (50Ω terminal) | |||||
Scope | ±5Vpkac+dc | ||||
Precision | ±(1% of the setting value + 5mV + 1% of the amplitude) | ||||
Waveform output | |||||
Impedance | 50 Ω | ||||
Modulation property | |||||
Modulation type | AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM | ||||
AM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Modulation depth | 0% ~ 120% | ||||
DSB-AM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Modulation depth | 0% ~ 120% | ||||
FM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
PM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Phase deviation | 0 ° ~ 360 ° | ||||
ASK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
PSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
BPSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Data source | PN15, PN21, 01, 10 | ||||
Modulation frequency | 2mHz~1MHz | ||||
QPSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Data source | PN15, PN21 | ||||
Modulation frequency | 2mHz~1MHz | ||||
3FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
4FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
OSK | |||||
Carrier | Sine wave | ||||
Modulation source | Internal, external | ||||
Shock time | 8 ns - 4.99975 ms | ||||
Modulation frequency | 2mHz~1MHz | ||||
PWM | |||||
Carrier | Square wave | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~50KHz | ||||
Duty cycle deviation | 0% ~ 50% | ||||
External modulation input | |||||
Input range | AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc | ||||
ASK, FSK, PSK: TTL level | |||||
Input bandwidth | 50KHz | ||||
Input impedance | 10 KΩ | ||||
Sweep frequency property | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Type | Linear | ||||
Direction | Upward | ||||
Frequency sweep time | 1ms ~ 50Ks | ||||
Hold/return time | 0ms ~ 50Ks | ||||
Trigger source | Internal, external, manual | ||||
Tag | Synchronize the model's falling edge | ||||
Burst property | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Carrier frequency | 1 μHz ~ 100 MHZ | 1 μHz ~ 80 MHZ | 1 μHz ~ 60 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 25 MHZ |
Burst counting | 1 ~ 2000 000 000 | ||||
Start/stop phase | 0 ° ~ 360 ° | ||||
Internal cycle | 2 μs ~ 500 s | ||||
Door control source | External trigger | ||||
Trigger source | Internal, external, manual | ||||
Frequency meter | |||||
Measurement functions | Frequency, period, positive/negative pulse width, duty cycle | ||||
Frequency | 1 μHz ~ 80 MHZ | ||||
Gate time | 10ms~16s | ||||
Input signal range | 0 ~ 3.3 V | ||||
Trigger property | |||||
Trigger input | |||||
Level | TTL - compatible | ||||
Slope | Up or down (optional) | ||||
Pulse width | >100ns | ||||
Trigger output | |||||
Level | TTL - compatible | ||||
The pulse width | >60ns | ||||
Maximum frequency | 1MHz | ||||
Reference clock | |||||
External reference input | |||||
Lock range | 10 MHz ± 50 Hz | ||||
Level | Low level: 0~400mV, high level: 2.5V~5V | ||||
Locking time | < 2 s | ||||
Input impedance | 50 Ω, DC coupling | ||||
Internal reference output | |||||
Frequency | 10 MHz + 50 Hz | ||||
Level | 3.3 Vpp | ||||
Output impedance (typical value) | 50 Ω, DC coupling | ||||
Synchronous output | |||||
Level | TTL - compatible | ||||
Impedance | 50Ω, nominal value | ||||
Waveform(CH3) | |||||
Standard waveform output | sine wave, square wave, triangular wave,noise, harmonics,DC | ||||
Arbitrary waveform output | 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc | ||||
Frequency | sine wave:1uHz ~ 20MHz | ||||
square wave:1uHz ~ 5MHz | |||||
triangular wave:1 uHz ~ 1 MHz | |||||
harmonics:1uHz ~ 5MHz | |||||
Arbitrary waveform:1uHz ~ 15MHz | |||||
Precision | ±1ppm, 18~28℃ | ||||
Sampling rate | 150MSa/s | ||||
Wavelength | 8K | ||||
Voltage resolution | 12bit | ||||
Amplitude range | 2 mVpp ~ 7 Vpp(High resistance) | ||||
Output impedance | 50Ω | ||||
General features | |||||
Interface | USB Host, USB Device | ||||
Display | 4.3-inch color TFT LCD screen | ||||
Voltage | 100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ | ||||
120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ | |||||
Power | <30W | ||||
Fuse | T, 0.5 A, 250 v, 5 x20mm | ||||
Environment | |||||
Temperature range | Operation: 10℃ ~ 40℃ | ||||
Non-operation: -20℃ ~ 60℃ | |||||
Humidity range | ≤+104℉(≤+40°C): Relative humidity ≤90% | ||||
106℉~122℉ (+41°C ~50°C): Relative humidity ≤60% | |||||
Altitude | Operation: below 3000 meters | ||||
Non-operation: below 15000 meters | |||||
Mechanical specifications | |||||
Dimensions (W × H × D) | 308mm x 232mm x 110mm | ||||
Weight | 3.09KG |
HDG3103C
Fiche technique
- Serie
- HDG3000C
- Générateur de signal / Fonctions
- Oui
- Canaux de générateur
- 3
- Bande passante maximale (MHZ)
- 100MHZ
