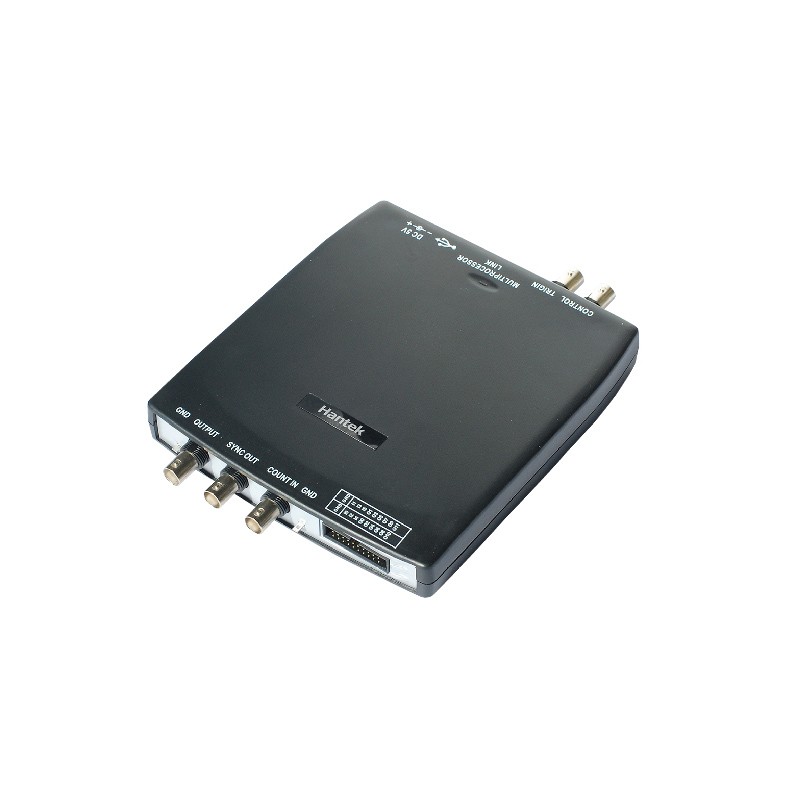

Hantek DDS3X25 Générateur de signaux arbitraires / Fonctions
187.98 €
225,58 € TVA INCLUSE
Générateur de signaux aléatoires de 25 MHz (onde sinusoïdale atteignant 75 MHz).
Fréquence d'échantillonnage de 200 MSa / s, résolution verticale de 12 bits.
L'interface USB, plug and play, ne nécessite pas d'alimentation externe, compacte et portable.
Hantek DDS3X25 Générateur de signaux arbitraires / Fonctions
Features
- Cost effective, PC USB Function/Arbitrary Waveform Generator.
- It can be used to disengage computer. Simulation of sensors and real word signals.
- It can be used as the other products signal generator module, no need computer. It will produce the needed arbitrary waveform signal when power on.
- 200 MSa/s of sample rate, 12 bits of vertical resolution.
- 25Mz Arbitrary waveform output (sine wave up to 75 Mz).
- One computer can be linked with several DDS-3X25 to expand multi-channels.
- 50 MHz frequency counter.
- 12bits pattern generator.
- USB interface, plug and play, no need external power supply, compact and portable.
- Operating system: Windows NT, Windows 2000, Windows XP, Windows Vista, Windows 7.
- Second Design support: LabviewVBVCDelphiC++Build. Provide second design examples.
| Arbitrary Waveform Output | |
| Wave frequency | DC~25MHz |
| DAC clock | 2K~200MHz adjustable |
| Channels | 1CH waveform output |
| Waveform Length | 4KSa |
| Vertical Resolution | 12 bit |
| Frequency stabilization | 30ppm |
| Amplitude | ±3.5V Max. |
| Output impedance | 50 Ω |
| Output current | 50mA Ipeak=50mA |
| System Bandwidth | 25M |
| Wave distortion | -50dBc(1KHz), -40dBc(10KHz) |
| Frequency Counter | |
| Frequency area | DC~50MHz |
| Input Amplitude | 400mVpp~18Vpp |
| Coupling | DC |
| Frequency precision | ±Time Base Error ±1 Count |
| Input impedance | > 100KΩ |
| Pattern Generator | |
| Digit | 12 Bits Pattern Generator and 6Bit digital In |
| Type | LVCMOS |
| Working Environment | |
| Temperature | 0~70 centigrade |
| Humidity | 0~95% |
| Weight | 0.3Kg |
