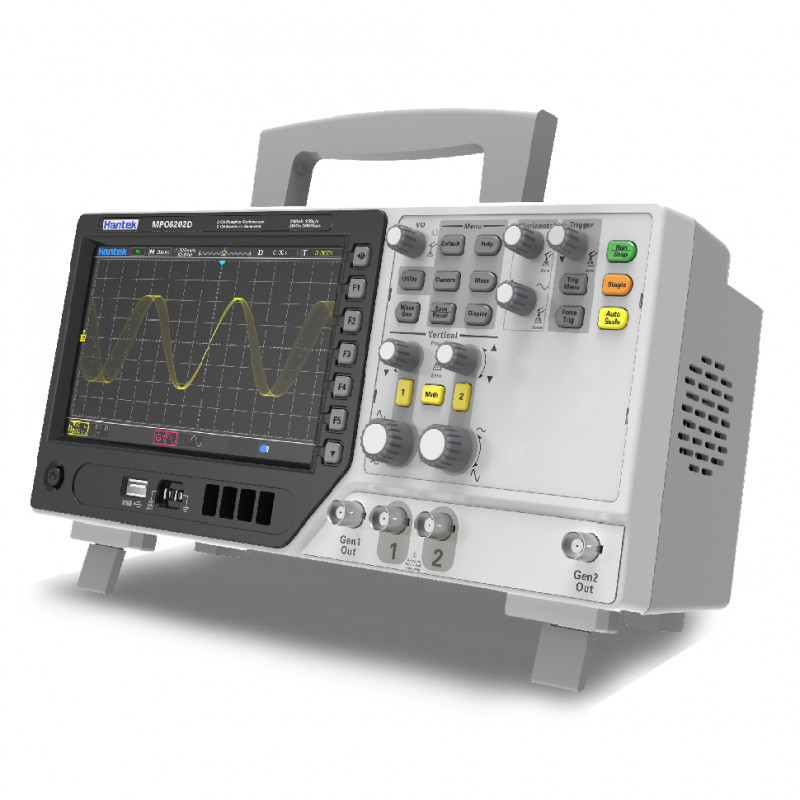

Hantek MPO6082D Oscilloscope à 2 canaux avec 2 Générateurs AWG et 16 canaux d'analyseur logique
  • Hantek MPO6082D Oscilloscope à 2 canaux avec 2 Générateurs AWG et 16 canaux d'analyseur logique

Hantek MPO6082D Oscilloscope 2 canaux 80MHZ + 2 Gén. AWG + 16 Anal. Logique

654.94 €
785,93 € TVA INCLUSE

Oscilloscope à 2 canaux avec une bande passante de 80 MHz.
2 canaux de générateur de signaux arbitraires / fonctions.
16 canaux de l'analyseur logique.
1 GSa / s de période d'échantillonnage.
Capturez des taux allant jusqu'à 400 000 FPS.
Profondeur de mémoire de 64M.
Écran tactile capacitif WVGA (800x600).
16 types de fonctions de prise de vue.
Déclenchement et décodage de protocoles série (UART, CAN, LIN, SPI, IIC).
Fonction de génération de diagramme de Bode.

Quantité
Expédition en 7/10 jours

Hantek MPO6000D Series - Oscilloscopes à 2 canaux
Avec 2 générateurs AWG et 16 canaux d'analyseur logique

Caractéristiques:

  • Oscilloscope six en un: oscilloscope 2 canaux + analyseur logique 16 canaux + générateur de forme d'onde 2 canaux + voltmètre numérique + analyseur de protocole série + analyse spectrale FFT.
  • Fonction d'acquisition segmentée, prise en charge pour capturer jusqu'à 80 000 sections.
  • Taux de capture de 60 000 wfms / s (affichage des points) / 400 000 wfms / s (mode d'acquisition rapide des points).
  • Jusqu'à 16 types de fonctions de déclenchement, dont 5 types de déclencheurs de protocole.
    Fournit 5 options de décodage série.
  • 1 GSa / s fréquence d'échantillonnage en temps réel des canaux analogiques.
    Profondeur de mémoire standard de 64 Mpts.
  • Source de signal à 2 canaux, 13 types de formes d'onde à l'intérieur, 4 ensembles de formes d'onde arbitraires, taux d'échantillonnage de 200 M, longueur de forme d'onde de 8 Kpts.
  • Taux d'échantillonnage en temps réel de 1 GSa / s des canaux numériques.
    Faible bruit de base, plage dynamique verticale ultra large de 500 uV / div à 10 V / div.
  • Écran tactile capacitif WVGA 7 pouces, (800 * 480) TFT, avec écran ultra-large, image vivante, faible consommation d'énergie et longue durée de vie.
  • Mesure automatique de 42 types de paramètres de forme d'onde (avec statistiques).
    Voltmètre numérique 5 bits et fonction d'indicateur de fréquence matérielle 6 bits.
  • Fonction de diagramme de Bode (les oscilloscopes avec fonction de source de signal peuvent utiliser).
    Fonctions d'opérations mathématiques à formes d'ondes multiples 【MATH function. Fonction de recherche d'événement.
  • Interfaces standard: périphérique USB, hôte USB, LAN, interfaces en option: HDMI, UART
    Conforme aux normes d'instrument de classe LXI CORE 2011 DEVICE . Permettre la création et la reconfiguration rapides, économiques et efficaces du système de test.Supporte le contrôle à distance des commandes.

Model comparison


2-channel oscilloscope+2CH AFG + 16CH LA - Digital fluorescence display and color temperature display

Bode diagram function - 256 grade color display

2-channel 25M waveform/Arb generator - Waveform capture rateup to 400,000

FFT function Scales show - Segmented acquisition and history waveform

16-channel digital channel - 64M memory depth


7 inch capacitive touch screen - 5 bits digital voltage meter , 6 bits frequency indicator


FFT function

Parameters

Oscilloscope function

Acquisition Real-time sample rate 1 GSa/s(single channel) 500 MSa/s(two channels)
Note:digital channel 12,34 open at the same time,it is considered as one channel
Peak detection Analog channel 4ns
Note:digital channels don’t support
Average mode Analog channel

All channels reach N time samples at the same time,N can be selected from

2、4、8、16、32、 64、128、256、512 and 1024.

Note:digital channels don’t support
High resolution Up to 12bit
Note:digital channels don’t support
Minimum test pulse width 8ns
Memory depth Single channel 64M
Two channels 32M
Input Channel quantity 4 analog channels
Note:data channels can’t be opened
3 analog channels
Note:digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4
2 analog channels
Note:digital channels infinitize
1 analog channel
Note:digital channels infinitize
0 analog channel
Note:digital channels infinitize
Input coupling DC、AC or GND
Note:digital channels don’t support
Input impedance,DC coupling Analog channel
25pF±3 pF,1MΩ±2%
Digital channel
(300KΩ±2%) ,(8 pF±3 pF)
Supported probe attenuation factor Analog channel 1X、10X、100X、1000X
Voltage classes 300V CAT II
Maximum input voltage Analog channel 300VRMS (10X)
Digital channel -25V~25V
Horizontal Waveform interpolation (sin x)/x
Maximum record length Single channel maximum 64M
Two channels maximum32M
three/four channels maximum 16M
Horizontal scale range DSO6084 DSO6104
2ns/div~100s/div 1, 2, 5 step by step
Time base mode Y-T、X-Y、Roll
X-Y number Channel 1,2 1 XY channel、channel3 4 1 XY channel
Zero offset ±0.5 div× minimum time base gear
Sample Rate and ±25ppm
Delay Time Accuracy
Clock drifting ≤±5 ppm/year
Delta Time Measurement single,“acquisition”mode
Accuracy
(Full Bandwidth) ±(1 sample interval+100ppm×reading+0.6ns)
>16 times averages
±(1 sample interval+100ppm×reading+0.4ns)
Sample interval=sec/div÷200
Vertical Bandwidth(-3db) DPO6082 DPO6102 DPO6202
80MHz 100MHz 200MHz
Vertical resolution Analog channel 8bit
Digital channel 1bit
Vertical scale range nput BNC position is 500μV/div~10V/div
Position range 500μV/div to 120mV/div,±1V
122mV/div to 1.2V/div,±10V
1.22V/div to 10V/div,±50V
Optional analog bandwidth limitation Typical 20MHz
Bass response(-3db) In BNC position is≤10Hz
Rising time in BNC position,typical DPO6082 DPO6102 DPO6202
≤4.4ns ≤3.5ns ≤1.8ns
Vertical gain accuracy In “normal” or “average” acquisition mode,the accuracy of 10V/div to 10mV/div is ±3%
In “normal” or “average” acquisition mode,the accuracy of 5mV/div to 500uV/div is ±4%.
DC offset accuracy ±0.1 div±2 mV±1% offset value
The isolation of channels DC maximum bandwidth:>40 dB
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger Trigger level range ±5 divisions from the center of the screen
Trigger mode auto、general、single
Level CH1~CH2 ±4 divisions from the center of the screen
Holdoff range 8ns~10s
Trigger level accuracy CH1~CH2 0.2 div×volts/div within ±4 divisions from the center of the screen
Edge trigger Slope Rising edge,falling edge,rising or falling edge
Signal source CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Pulse width trigger Polarity Positive polarity,negative polarity
Condition(When) <,>, !=, =
Signal source CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Pulse width range 8ns ~ 10s
Video trigger Signal standard NTSC, PAL
Signal source CH1~CH2
Synchronization Scanning line、line number、odd field、even field、all field
Slope trigger Slope rise,fal
condition(When) <,>, !=, =
Signal source CH1 ~ CH2
Time range 8ns ~ 10s
Overtime trigger Signal source CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Polarity Positive polarity,negative polarity
Time range 8ns ~ 10s
Window trigger Signal source CH1~CH2LA1~LA4
Pattern trigger Pattern 0:low level;1:high level;X:ignore;
Level(signal source) CH1~CH2
Interval trigger Slope rise,fall
condition(When) <,>, !=, =
Signal source CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Time rangeTime range 8ns ~ 10s
Delay trigger Edge type Rising edge,falling edge
Signal source CH1~CH2
condition(When) <,>, !=, =
Time range 8ns ~ 10s
Set up hold trigger Edge type Rising edge,falling edge
Signal source CH1~CH2
condition(When) <,>, !=, =
Time range 8ns ~ 10s
Runt trigger Polarity Positive polarity,negative polarity
Condition(When) <,>, !=, =
Signal source CH1~CH2
Time range 8ns ~ 10s
UART trigger condition(When) start、stop、data、odd-even check、reception error
Signal source(RX/TX) CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format Hex(hexadecimal)
Data length 1 byte
Data bit width 5 bit, 6 bit, 7 bit, 8 bit
Odd-even check none、odd、even
Free level high、low
Baud rate (optional)

110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520

0/230400/380400/460400 bit/s

Baud rate(user-defined) 300bit/s~334000bit/s
LIN trigger condition(When) Interval field、synchronization field、ID field、synchronization error、identifier、IDand data
Signal source CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format Hex(hexadecimal)
Baud rate(optional)

110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520

0/230400/380400/460400 bit/s

Baud rate(user-defined) 300bit/s~334000bit/s
CAN trigger condition(When) Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame
Signal source CH1~CH2
Data format Hex(hexadecimal)
Baud rate(optional)

10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000

, 250000, 500000, 800000, 1000000

Baud rate(user-defined) 5kbit/s~1Mbit/s
SPI trigger Signal source CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format Hex(hexadecimal)
Data bit width 4, 8, 16, 24, 32
IIC trigger Signal source (SDA/SCL) CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format Hex(hexadecimal)
Data index 0~7
opportunity(condition) Start bit、stop bit、no response、address、data、restart
Measurement cursor Voltage difference between cursors △V
Time difference between cursors △T
Reciprocal of △T,in Hertz(1/△T)
Auto measurement frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF
DVM Data source CH1,CH2
Measurement type DC effective value
AC effective value
DC
Frequency meter hardware 6 bits frequency meter

Arbitrary waveform generator

Arbitrary waveform generator(for oscilloscopes with signal source channels) Channel number 2 channels
Sample rate 200MSa/s
Vertical resolution 12 bits
Maximum frequency 25 MHz
Standard waveforms sin、square、pulse、triangular,noise、DC
Sinc、index、semi-distortion、lorentz,dual tone multiple frequency,gauss,ECG
Arbitrary waveform Arb1,Arb2,Arb3,Arb4
Sin Frequency range 0.1Hz~25MHz
square/pulse Frequency range 0.1Hz~10MHz
triangular wave Frequency range 0.1Hz~1MHz
Sampling wave Frequency range 0.1Hz~1MHz
Index Frequency range 0.1Hz~5MHz
Semi-distortion Frequency range 0.1Hz~1MHz
lorentz Frequency range 0.1Hz~1MHz
Dual tone multiple frequency Frequency range 0.1Hz~1MHz
Gauss Frequency range 0.1Hz~1MHz
ECG Frequency range 0.1Hz~1MHz
Arbitrary wave Frequency range 0.1 Hz to 10 MHz
Waveform length 8KSa
Frequency accuracy 100 ppm(<10 kHz) 50 ppm(>10 kHz)
resolution 0.1 Hz or 4 bits,take the greater one
Amplitude Output range 10mV~7Vp-p(high impedance)
5mV~3.5Vp-p(50Ω)
DC offset range ±3.5 V,high impedance
±1.75 V,50 Ω
resolution 100 μV or 3 bits,take the greater one
accuracy 2%(1 kHz)
Output impedance 50 Ω

Logic analyzer

Logic analyzer Input impedance,DC coupling Digital channel
(300KΩ±2%) ,(8 pF±3 pF)
Threshold value 4 channels in 1 group adjustable threshold value
Threshold option TTL(1.4 V)
5.0 V CMOS(+2.5 V)
3.3 V CMOS(+1.65 V)
2.5 V CMOS(+1.25 V)
1.8 V CMOS(+0.9 V)
ECL(-1.3 V)
PECL(+3.7 V)
LVDS(+1.2 V)
0V
User-defined
Threshold range ±7.0V,10mV step by step
Threshold accuracy ±(100mV+3% threshold setting)
Dynamic range ±5.0V+ threshold
Minimum voltage swing 500 mVpp
Vertical resolution 1 bit

General specifications

Display Display type 7"TFT diagonal liquid crystal
Display resolution 800(horizontal)*480(vertical)pixels
Display colour 16 million colours(24 bits true colour)
Persistence time minimum、1 s、5 s、10 s、30S、infinite
Display type dot、vector
Display mode Color temperature,gray scale
Display brightness adjustable
Grid type adjustable
Grid brightness adjustable
Interface Standard interface USB Host,USB Device,LAN, EDU signal WIFI
Aux(trigger output/PassFail )--only EDU with this interface
Optional interface PassFail
UART
HDMI
General specifications Probe compensator output
Output voltage ,typical about 2Vpp input≥1MΩ load
frequency、typical 1kHz
Power supply 100-120VACRMS(±10%),45Hz to 440Hz,CATⅡ
120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ
Power consumption <30W
Fuse T,3.15A,250V,5x20mm
Operating temperature 0~50 °C (32~122 °F)
Storage temperature -40~+71 °C (-40~159.8 °F)
Humidity ≤+104℉(≤+40°C): ≤90% relative humidity
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
Cooling method convection
Altitude Operating and nonoperating 3,000m(10,000 feet)
Mechanical shock Random vibration 0.31 g RMS from 50Hz to 500Hz,
10 minutes on each axis
Nonoperating 2.46g RMS from 5Hz to 500Hz,
10 minutes on each axis
Operating 50g,11ms,half-sine wave
Mechanical Size 318 x 140 x 150mm(length x width x height)
Weight 2900g

MPO6002D Series Accessories Included:
HTKES826100327_7888.png HTKES430101121_7154.jpg
HTKES826141138_7672.jpg HTKES430101328_1829.jpg



HTKES826115140_1387.jpg HTKES826113632_1341.jpg

HANTEK
MPO6082D

Fiche technique

Canaux d'oscilloscope
2
Bande passante de l'oscilloscope
80
Serie
MPO6002D
Taux de capture
400k
Générateur de signal / Fonctions
Oui
Analyseur logique
Oui
Décodage des protocoles série
Oui
Écran tactile
Oui

Références spécifiques

Téléchargement

Pour télécharger ces fichiers, vous devez avoir acheté le produit auparavant et être connecté à votre compte.

(FR) Manuel basique

Manuel basique de sécurité et de démarrage - French

Téléchargement (159.77KB)

(EN) Manual abbreviated

Basic Safety Manual and Startup - English

Téléchargement (158.8KB)

(EN) DPO6000-MPO6000 Ext. Manual

(EN) Extended Manual DPO6000-MPO6000 - English

Téléchargement (5.94MB)
