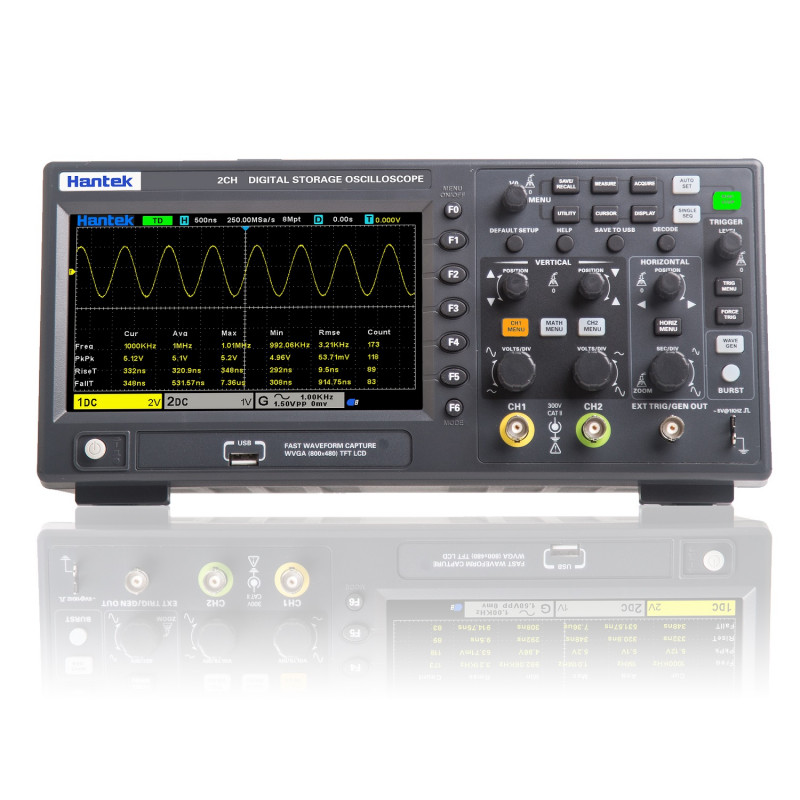

Caractéristiques:
2 canaux avec commandes indépendantes.
Bande passante de 150 MHZ.
Taux d'échantillonnage jusqu'à 1 GSa / s.
Profondeur de mémoire de 8M.
Plage verticale 2mV / div ~ 10V / div.
Générateur de forme d'onde 1 CH 25 MHz intégré (DSO2D10, DSO2D15).
Résolution verticale: 8 bits.
Déclencheur: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Low Amp, UART, LIN, CAN, SPI, IIC.
Décodage BUS et analyse de protocole: RS232 / UART, I2C, SPI, CAN, LIN.
Vous pouvez enregistrer plusieurs formats de données tels que des configurations, des formes d'onde, des formes d'onde de référence, CSV, des images.
Il dispose d'un voltmètre numérique à 3 chiffres et d'un indicateur de fréquence matériel à 6 chiffres.
32 types de mesures automatiques avec des statistiques en temps réel d'écart maximum, minimum, standard, etc.
2 voltmètres numériques.
Prend en charge les tests de seuil et les mesures dans l'écran.
Ensemble complet de commandes de contrôle à distance SCPI.
Périphérique hôte USB.
Des modèles
Générateur de forme d'onde 1CH 25 MHz, prend en charge la sortie de rafale de forme d'onde arbitraire et la sortie de forme d'onde de modulation
32 types de mesures automatiques avec statistiques
Vous pouvez enregistrer 10 ensembles de formes d'onde de référence, de formes d'onde CSV et de paramètres. Fonction de capture d'écran USB en un clic
2 ensembles de fonctions DVM, voltmètre numérique à 3 chiffres et indicateur de fréquence matérielle à 6 chiffres
Déclenchement et décodage du bus série, avec fonction de surveillance du protocole
Profondeur de mémoire de 8 M, pour réduire la distorsion de la forme d'onde et restaurer les formes d'onde réelles.
Fonction PASS / FAIL
Fonctions mathématiques et FFT
Format X-Y et affichage à deux fenêtres
Paramètres
Model |
DSO2D15 |
DSO2D10 |
DSO2C15 |
DSO2C10 |
Bandwidth |
150MHz |
100MHz |
150MHz |
100MHz |
Oscilloscope channels |
2CH |
2CH |
2CH |
2CH |
Waveform generator |
1CH |
1CH |
- |
- |
Oscilloscope |
Sample rate |
1GSa/s (single channel) 500MSa/s (two channels) |
Acquisition |
Normal |
Sample data |
Peak-to-peak value |
Display high frequency and random burr |
Average |
Average waveform, times: 4, 8, 16, 32, 64, 128 |
High resolution |
Up to 12bit |
Input |
Input coupling |
DC, AC, GND |
Input impedance |
1MΩ±2% ‖20pF±3pF |
Probe attenuation factor |
1X, 10X, 100X, 1000X |
Voltage rating |
300V CAT II |
Maximum input voltage |
300VRMS (10X) |
Horizontal |
Waveform interpolation |
(sin x)/x |
Maximum record length |
Single channel maximum 8M |
Two channels maximum 4M |
Horizontal scale range |
2ns/div~100s/div 1, 2, 5 step by step |
Time base mode |
Y-T, X-Y, Roll |
Zero offset |
±0.5 div×minimum time base gear |
Sample Rate and Delay Time Accuracy |
±25ppm |
Vertical |
Model |
DSO2D15 |
DSO2D10 |
DSO2C15 |
DSO2C10 |
Bandwidth |
150MHz |
100MHz |
150MHz |
100MHz |
Rising time in BNC position (typical) |
2.4ns |
3.5ns |
2.4ns |
3.5ns |
Vertical resolution |
8 bits resolution, each channel samples simultaneously |
Vertical sensitivity |
2mV/div to 10V/div |
Offset range |
≥ 200mV/div, ±1V; |
<200mV/div ±50V |
Mathematical operation |
+, -, ×, ÷, FFT |
FFT |
Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop |
Bandwidth Limit |
20MHz |
Bass response(-3db) |
In BNC position ≤ 10Hz |
Vertical gain accuracy |
In ''normal'' or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%; |
In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% |
Note: Bandwidth reduced to 6MHz when using a 1X probe |
Trigger |
Trigger type |
Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC |
Trigger level range |
±5 divisions from the center of the screen |
Trigger mode |
Auto, Normal, single |
Level |
CH1~CH2 |
±4 divisions from the center of the screen |
EXT |
0~3.3V |
Holdoff range |
8ns~10s |
Trigger level accuracy |
CH1~CH2 |
0.2 div×volts/div within ±4 divisions from the center of the screen |
EXT |
±(Set value× 6%+40mV) |
Edge trigger |
Slope |
Rising edge, falling edge, rising or falling edge |
Signal source |
CH1, CH2, EXT |
Pulse width trigger |
Polarity |
Positive polarity, negative polarity |
Condition(When) |
<, >, !=, = |
Signal source |
CH1~CH2, |
Pulse width range |
8ns ~ 10s |
Accuracy |
8ns |
Video trigger |
Signal standard |
NTSC, PAL |
Signal source |
CH1~CH2 |
Synchronization |
Scanning line, line number, odd field, even field, all field |
Slope trigger |
Slope |
rising, falling |
Condition(When) |
<, >, !=, = |
Signal source |
CH1 ~ CH2 |
Time range |
8ns ~ 10s |
Accuracy |
8ns |
Overtime trigger |
Signal source |
CH1~CH2, |
Polarity |
Positive polarity, negative polarity |
Time range |
8ns ~ 10s |
Accuracy |
8ns |
Window trigger |
Signal source |
CH1~CH2 |
Pattern trigger |
Pattern |
0: low level; 1: high level; X: ignore |
Level(signal source) |
CH1~CH2 |
Interval trigger |
Slope |
rising, falling |
Condition(When) |
<, >, !=, = |
Signal source |
CH1~CH2 |
Time range |
8ns ~ 10s |
Accuracy |
8ns |
Under Amp trigger |
Polarity |
Positive polarity, negative polarity |
Condition(When) |
<, >, !=, = |
Signal source |
CH1~CH2 |
Time range |
8ns ~ 10s |
Accuracy |
8ns |
UART trigger |
Condition(When) |
Start, Stop, data, Parity ERR, COM ERR |
Signal source(RX/TX) |
CH1~CH2 |
Data format |
Hex (hexadecimal) |
Data length |
1 byte |
Data bit width |
5 bit, 6 bit, 7 bit, 8 bit |
Odd-even check |
none, odd, even |
Idle level |
high, low |
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s |
Baud rate(user-defined) |
300bit/s~334000bit/s |
LIN trigger |
Condition(When) |
Interval field, synchronization field, ID field, synchronization error, identifier, ID and data |
Signal source |
CH1~CH2 |
Data format |
Hex (hexadecimal) |
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s |
Baud rate(user-defined) |
300bit/s~334000bit/s |
CAN trigger |
Condition(When) |
Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame |
Signal source |
CH1~CH2 |
Data format |
Hex (hexadecimal) |
Baud rate (optional) |
10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 |
Baud rate(user-defined) |
5kbit/s~1Mbit/s |
SPI trigger |
Signal source |
CH1~CH2 |
Data format |
Hex (hexadecimal) |
Data bit width |
4, 8, 16, 24, 32 |
IIC trigger |
Signal source (SDA/SCL) |
CH1~CH2 |
Data format |
Hex (hexadecimal) |
Data index |
0~7 |
When(condition) |
Start bit, stop bit, No Ack, address, restart, address and data |
Channel |
1 |
Sample rate |
200MSa/s |
Vertical resolution |
12 bits |
Maximum frequency |
25 MHz |
Standard waveforms |
sine, square, ramp,Exp, noise, DC |
|
|
|
Sin |
Frequency range |
0.1Hz~25MHz |
Square/pulse |
Frequency range |
0.1Hz~10MHz |
Triangular wave |
Frequency range |
0.1Hz~1MHz |
Sampling wave |
Frequency range |
0.1Hz~1MHz |
Index |
Frequency range |
0.1Hz~5MHz |
Noise |
|
Arb1 |
Frequency range |
0.1 Hz to 10 MHz |
Arb2 |
Frequency range |
0.1 Hz to 10 MHz |
Arb3 |
Frequency range |
0.1 Hz to 10 MHz |
Arb4 |
Frequency range |
0.1 Hz to 10 MHz |
Waveform length |
8KSa |
Frequency |
Accuracy |
100 ppm (<10 kHz) 50 ppm (>10 kHz) |
Resolution |
0.1 Hz or 4 bits,take the greater one |
Amplitude |
Output range |
10mV~7Vp-p (high impedance) |
5mV~3.5Vp-p (50Ω) |
DC offset |
Range |
±3.5 V, high impedance |
±1.75 V, 50 Ω |
Resolution |
100 μV or 3 bits, take the greater one |
Accuracy |
2% (1 kHz) |
Output impedance |
50 Ω |
General specifications |
Display |
Display type |
7'' diagonal TFT liquid crystal |
Display resolution |
800 (horizontal)*480 (vertical) pixels |
Display colour |
16 million colours (24 bits true colour) |
Persistence time |
minimum, 1 s, 5 s, 10 s, 30 s, infinite |
Display type |
dot, vector |
Display brightness |
adjustable |
Grid type |
adjustable |
Grid brightness |
adjustable |
Interface |
Standard interface |
USB Host,USB Device |
General specifications |
Probe compensator output |
Output voltage, typical |
about 2Vpp input ≥1MΩ load |
Frequency, typical |
1kHz |
Power supply |
100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ |
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ |
Power consumption |
<30W |
Fuse |
T, 3.15A, 250V, 5x20mm |
Operating temperature |
0~50 °C (32~122 °F) |
Storage temperature |
-40~+71 °C (-40~159.8 °F) |
Humidity |
≤+104℉(≤+40°C): ≤90% relative humidity |
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity |
Altitude |
Operating and nonoperating |
3, 000m (10, 000 feet) |
Mechanical shock |
Random vibration |
0.31 g RMS from 50Hz to 500Hz, |
10 minutes on each axis |
Nonoperating |
2.46g RMS from 5Hz to 500Hz, |
10 minutes on each axis |
Operating |
50g, 11ms, half-sine wave |
Mechanical |
Size |
318 x 110 x 150mm (length x width x height) |
Weight |
1900g |

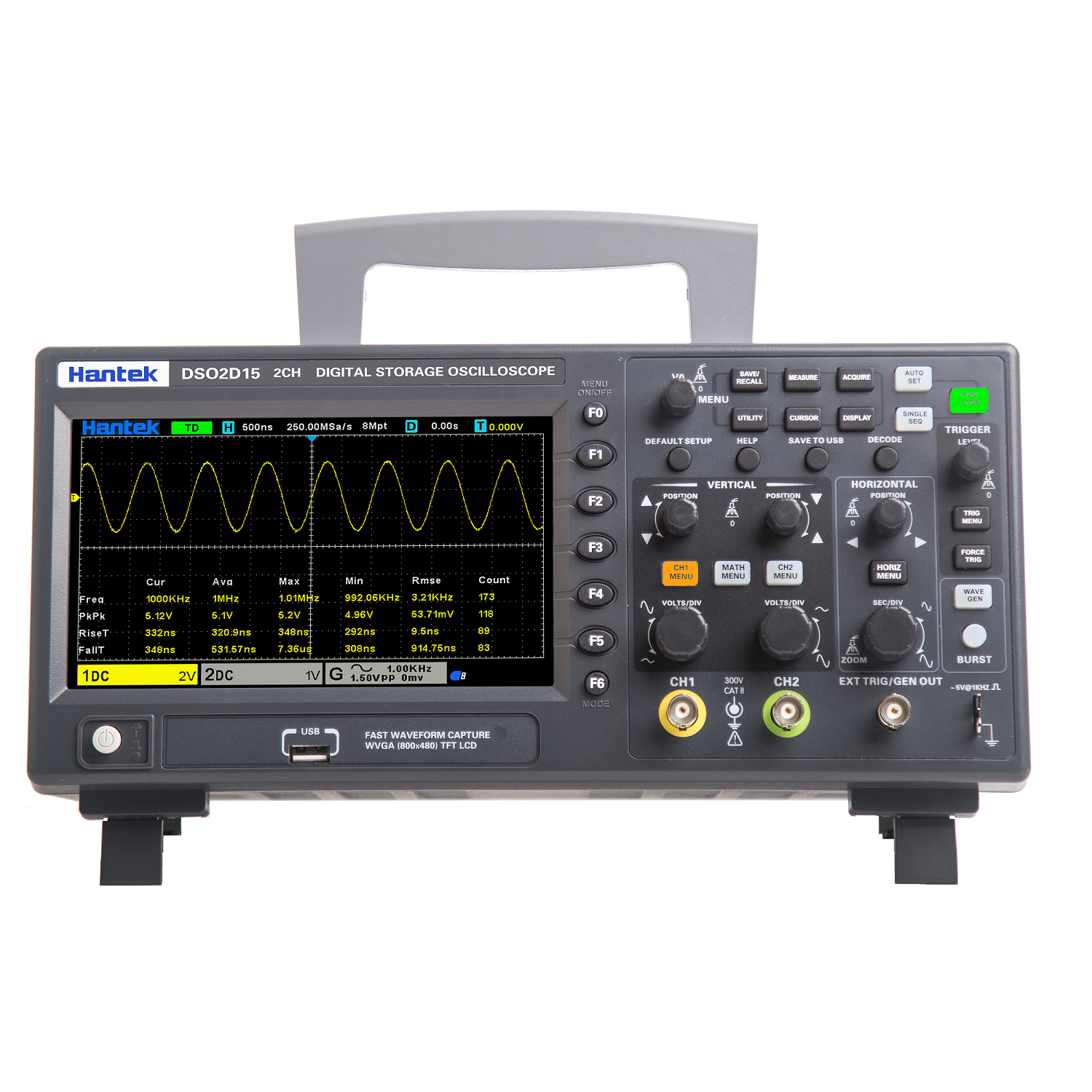

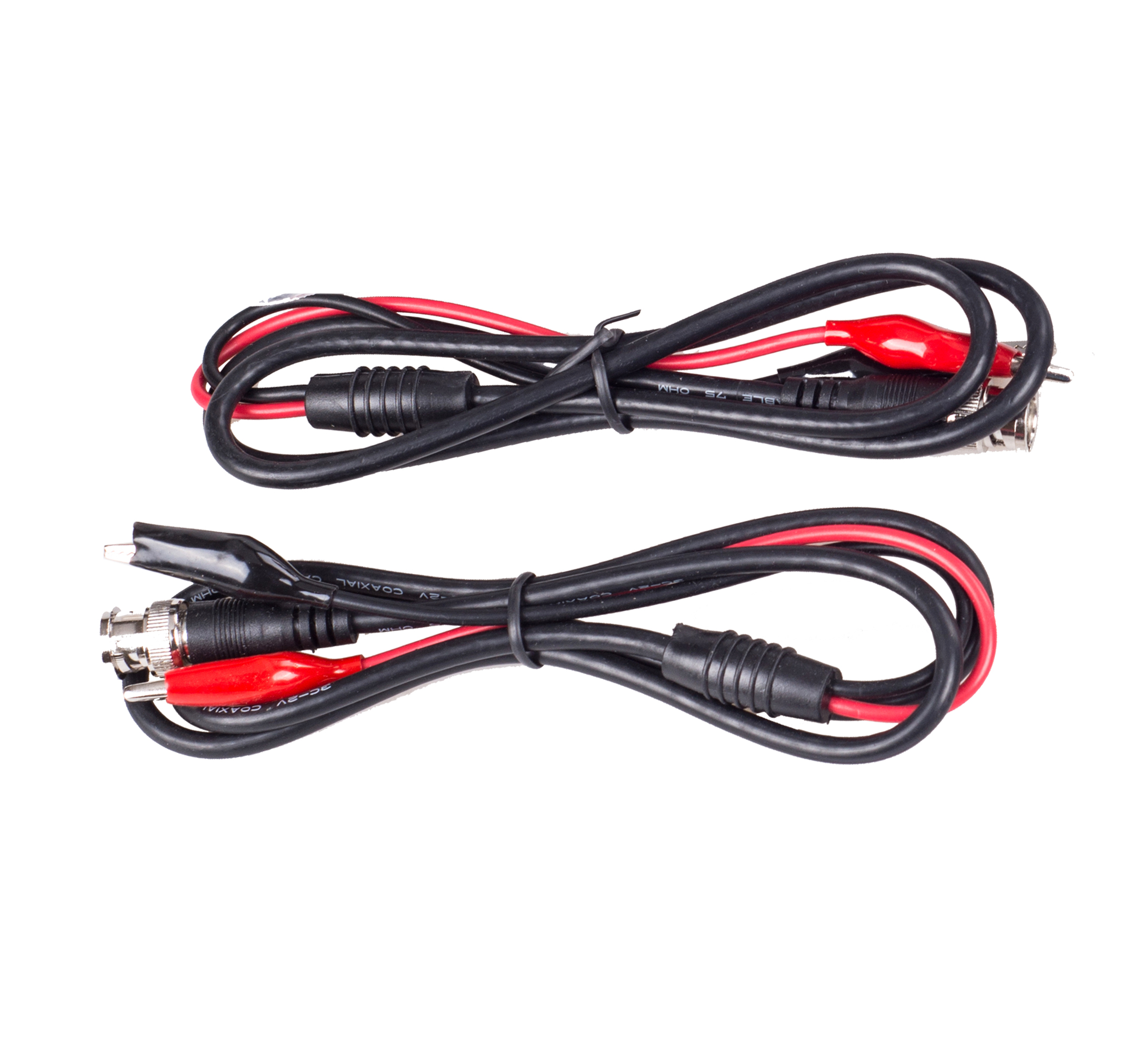

Accessoires
