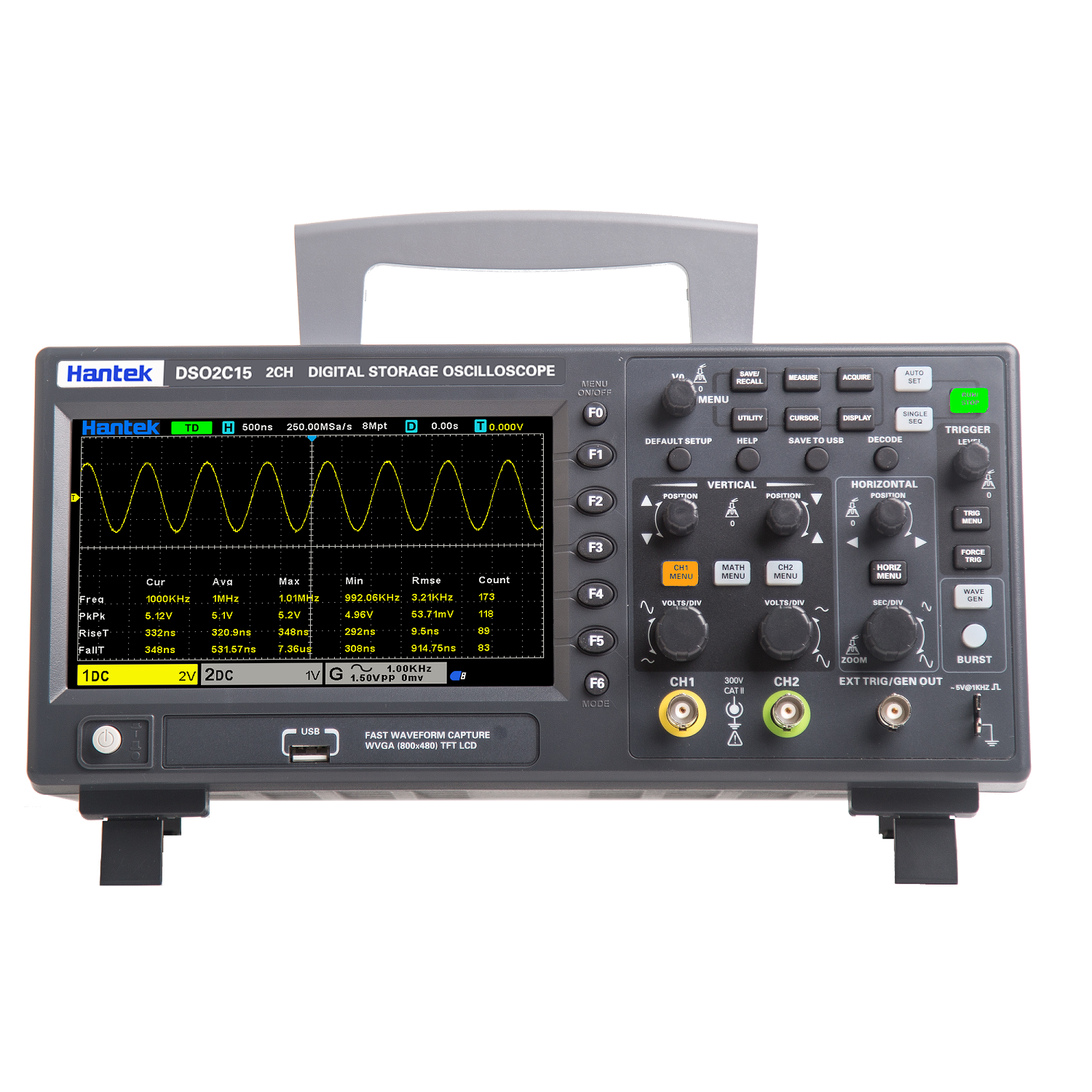

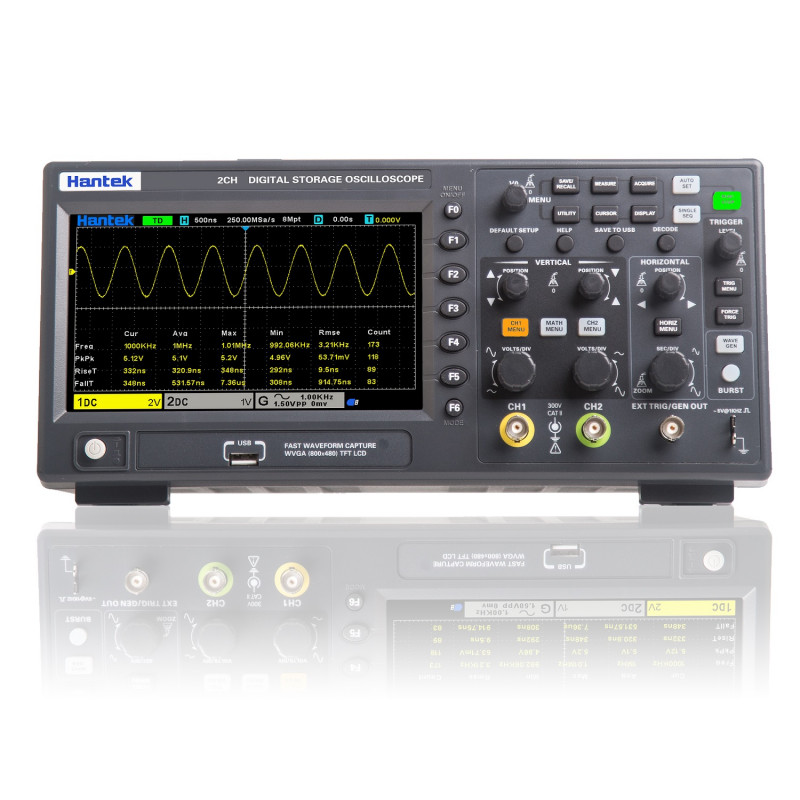

Hantek DSO2C15 Oscilloscope 2 canaux 150MHZ

Caractéristiques:

2 canaux avec commandes indépendantes.
Bande passante de 150 MHZ.
Taux d'échantillonnage jusqu'à 1 GSa / s.
Profondeur de mémoire de 8M.
Plage verticale 2mV / div ~ 10V / div.
Résolution verticale: 8 bits.
Déclencheur: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Low Amp, UART, LIN, CAN, SPI, IIC.
Décodage BUS et analyse de protocole: RS232 / UART, I2C, SPI, CAN, LIN.
Vous pouvez enregistrer plusieurs formats de données tels que des configurations, des formes d'onde, des formes d'onde de référence, CSV, des images.
Il dispose d'un voltmètre numérique à 3 chiffres et d'un indicateur de fréquence matériel à 6 chiffres.
32 types de mesures automatiques avec des statistiques en temps réel d'écart maximum, minimum, standard, etc.
2 voltmètres numériques.
Prend en charge les tests de seuil et les mesures dans l'écran.
Ensemble complet de commandes de contrôle à distance SCPI.
Périphérique hôte USB.

Des modèles

32 types de mesures automatiques avec statistiques

Vous pouvez enregistrer 10 ensembles de formes d'onde de référence, de formes d'onde CSV et de paramètres. Fonction de capture d'écran USB en un clic

2 ensembles de fonctions DVM, voltmètre numérique à 3 chiffres et indicateur de fréquence matérielle à 6 chiffres

Déclenchement et décodage du bus série, avec fonction de surveillance du protocole

Profondeur de mémoire de 8 M, pour réduire la distorsion de la forme d'onde et restaurer les formes d'onde réelles.

Fonction PASS / FAIL

Fonctions mathématiques et FFT

Format X-Y et affichage à deux fenêtres

Paramètres

Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150MHz	100MHz	150MHz	100MHz
Oscilloscope channels	2CH	2CH	2CH	2CH
Waveform generator	1CH	1CH	-	-
Oscilloscope
Sample rate	1GSa/s (single channel) 500MSa/s (two channels)
Acquisition
Normal	Sample data
Peak-to-peak value	Display high frequency and random burr
Average	Average waveform, times: 4, 8, 16, 32, 64, 128
High resolution	Up to 12bit
Input
Input coupling	DC, AC, GND
Input impedance	1MΩ±2% ‖20pF±3pF
Probe attenuation factor	1X, 10X, 100X, 1000X
Voltage rating	300V CAT II
Maximum input voltage	300VRMS (10X)
Horizontal
Waveform interpolation	(sin x)/x
Maximum record length	Single channel maximum 8M
	Two channels maximum 4M
Horizontal scale range	2ns/div~100s/div 1, 2, 5 step by step
Time base mode	Y-T, X-Y, Roll
Zero offset	±0.5 div×minimum time base gear
Sample Rate and Delay Time Accuracy	±25ppm
Vertical
Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150MHz	100MHz	150MHz	100MHz
Rising time in BNC position (typical)	2.4ns	3.5ns	2.4ns	3.5ns
Vertical resolution	8 bits resolution, each channel samples simultaneously
Vertical sensitivity	2mV/div to 10V/div
Offset range	≥ 200mV/div, ±1V;
	＜200mV/div ±50V
Mathematical operation	+, -, ×, ÷, FFT
FFT	Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Bandwidth Limit	20MHz
Bass response（-3db）	In BNC position ≤ 10Hz
Vertical gain accuracy	In ''normal'' or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%;
	In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4%
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger
Trigger type	Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
Trigger level range	±5 divisions from the center of the screen
Trigger mode	Auto, Normal, single
Level	CH1~CH2	±4 divisions from the center of the screen
	EXT	0~3.3V
Holdoff range	8ns~10s
Trigger level accuracy	CH1~CH2	0.2 div×volts/div within ±4 divisions from the center of the screen
	EXT	±（Set value× 6%+40mV）
Edge trigger	Slope	Rising edge, falling edge, rising or falling edge
	Signal source	CH1, CH2, EXT
Pulse width trigger	Polarity	Positive polarity, negative polarity
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2,
	Pulse width range	8ns ~ 10s
	Accuracy	8ns
Video trigger	Signal standard	NTSC, PAL
	Signal source	CH1~CH2
	Synchronization	Scanning line, line number, odd field, even field, all field
Slope trigger	Slope	rising, falling
	Condition(When)	<, >, !=, =
	Signal source	CH1 ~ CH2
	Time range	8ns ~ 10s
	Accuracy	8ns
Overtime trigger	Signal source	CH1~CH2，
	Polarity	Positive polarity, negative polarity
	Time range	8ns ~ 10s
	Accuracy	8ns
Window trigger	Signal source	CH1~CH2
Pattern trigger	Pattern	0: low level; 1: high level; X: ignore
	Level（signal source）	CH1~CH2
Interval trigger	Slope	rising, falling
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2
	Time range	8ns ~ 10s
	Accuracy	8ns
Under Amp trigger	Polarity	Positive polarity, negative polarity
	Condition(When)	<, >, !=, =
	Signal source	CH1~CH2
	Time range	8ns ~ 10s
	Accuracy	8ns
UART trigger	Condition(When)	Start, Stop, data, Parity ERR, COM ERR
	Signal source(RX/TX)	CH1~CH2
	Data format	Hex (hexadecimal)
	Data length	1 byte
	Data bit width	5 bit, 6 bit, 7 bit, 8 bit
	Odd-even check	none, odd, even
	Idle level	high, low
	Baud rate (optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s
	Baud rate(user-defined)	300bit/s~334000bit/s
LIN trigger	Condition(When)	Interval field, synchronization field, ID field, synchronization error, identifier, ID and data
	Signal source	CH1~CH2
	Data format	Hex (hexadecimal)
	Baud rate (optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s
	Baud rate(user-defined)	300bit/s~334000bit/s
CAN trigger	Condition(When)	Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame
	Signal source	CH1~CH2
	Data format	Hex (hexadecimal)
	Baud rate (optional)	10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000
	Baud rate(user-defined)	5kbit/s~1Mbit/s
SPI trigger	Signal source	CH1~CH2
	Data format	Hex (hexadecimal)
	Data bit width	4, 8, 16, 24, 32
IIC trigger	Signal source (SDA/SCL)	CH1~CH2
	Data format	Hex (hexadecimal)
	Data index	0~7
	When(condition)	Start bit, stop bit, No Ack, address, restart, address and data
Channel	1
Sample rate	200MSa/s
Vertical resolution	12 bits
Maximum frequency	25 MHz
Standard waveforms	sine, square, ramp,Exp, noise, DC
Sin	Frequency range	0.1Hz~25MHz
Square/pulse	Frequency range	0.1Hz~10MHz
Triangular wave	Frequency range	0.1Hz~1MHz
Sampling wave	Frequency range	0.1Hz~1MHz
Index	Frequency range	0.1Hz~5MHz
Noise
Arb1	Frequency range	0.1 Hz to 10 MHz
Arb2	Frequency range	0.1 Hz to 10 MHz
Arb3	Frequency range	0.1 Hz to 10 MHz
Arb4	Frequency range	0.1 Hz to 10 MHz
Waveform length	8KSa
Frequency	Accuracy	100 ppm (<10 kHz) 50 ppm (>10 kHz)
	Resolution	0.1 Hz or 4 bits，take the greater one
Amplitude	Output range	10mV~7Vp-p (high impedance)
		5mV~3.5Vp-p (50Ω)
DC offset	Range	±3.5 V, high impedance
		±1.75 V, 50 Ω
	Resolution	100 μV or 3 bits, take the greater one
	Accuracy	2% (1 kHz)
Output impedance	50 Ω
General specifications
Display	Display type	7'' diagonal TFT liquid crystal
	Display resolution	800 (horizontal)*480 (vertical) pixels
	Display colour	16 million colours (24 bits true colour)
	Persistence time	minimum, 1 s, 5 s, 10 s, 30 s, infinite
	Display type	dot, vector
	Display brightness	adjustable
	Grid type	adjustable
	Grid brightness	adjustable
Interface	Standard interface	USB Host，USB Device
General specifications	Probe compensator output
	Output voltage, typical	about 2Vpp input ≥1MΩ load
	Frequency, typical	1kHz
	Power supply	100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ
		120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
	Power consumption	<30W
	Fuse	T, 3.15A, 250V, 5x20mm
	Operating temperature	0~50 °C (32~122 °F)
	Storage temperature	-40~+71 °C (-40~159.8 °F)
	Humidity	≤+104℉(≤+40°C): ≤90% relative humidity
		106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
	Altitude	Operating and nonoperating	3, 000m (10, 000 feet)
	Mechanical shock	Random vibration	0.31 g RMS from 50Hz to 500Hz,
			10 minutes on each axis
		Nonoperating	2.46g RMS from 5Hz to 500Hz,
			10 minutes on each axis
		Operating	50g, 11ms, half-sine wave
	Mechanical	Size	318 x 110 x 150mm (length x width x height)
		Weight	1900g

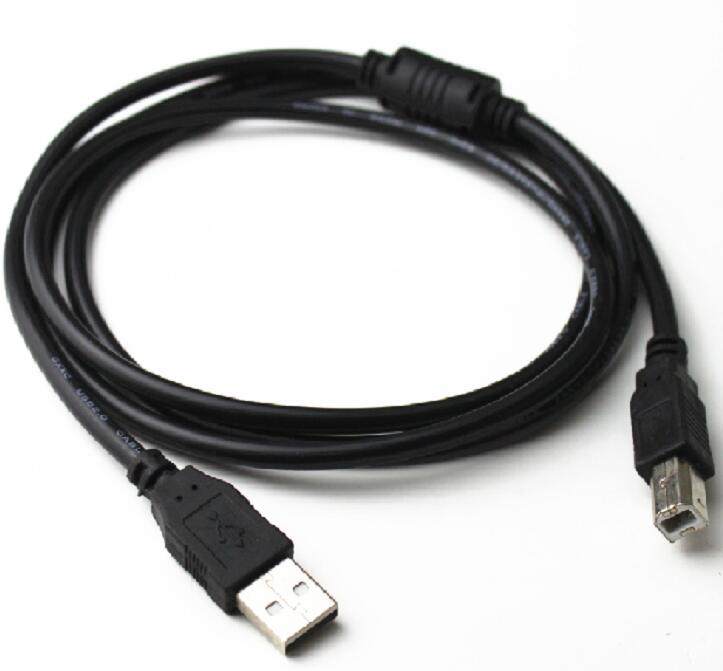

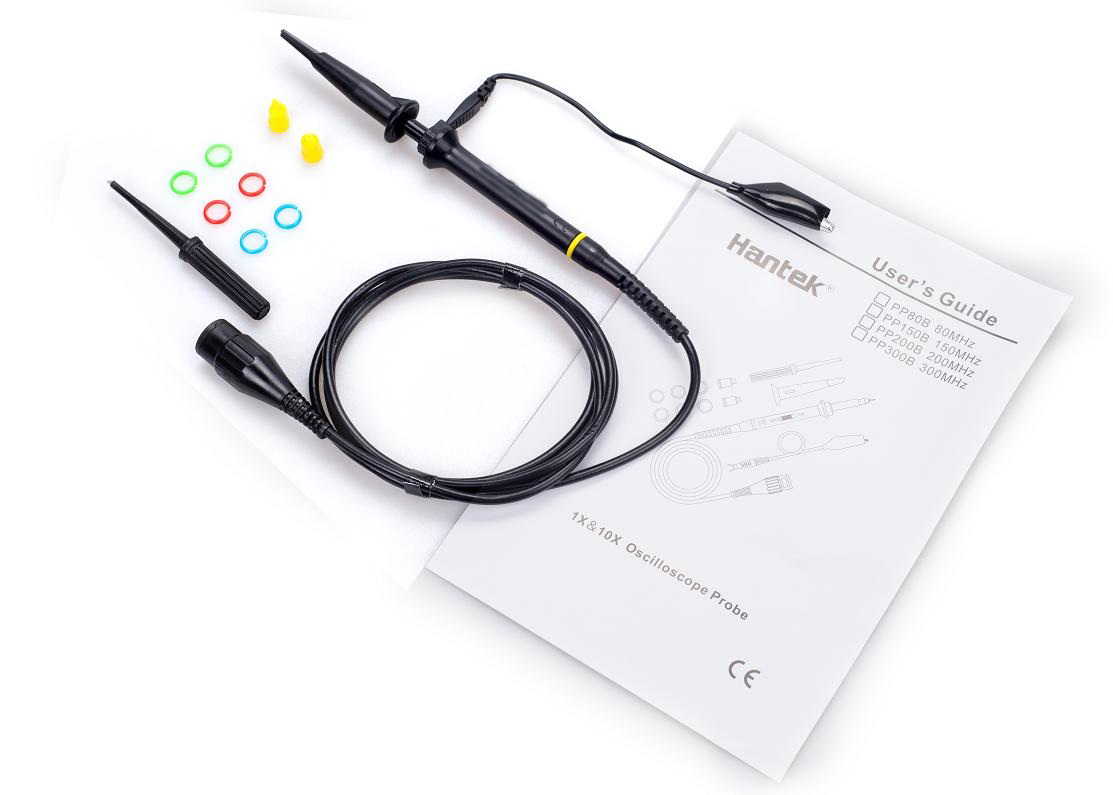

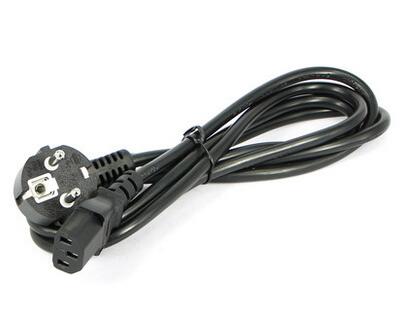

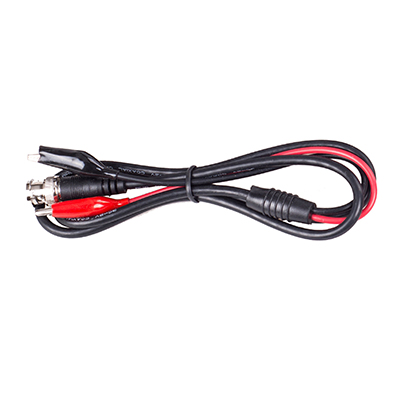

Accessoires
