Hantek DSO1202S Oscilloscope portable 200MHZ isolé

936.08 €

Oscilloscope avec bande passante de 200 MHz.
Catégorie d'isolation: CATII 1000V, CATIII 600V.
Fréquence d'échantillonnage de 1GSa / s.
1M de profondeur de mémoire.
6000 comptes DMM avec bargraphe analogique.
Écran LCD TFT couleur de 5,6 pouces, haute résolution (640 * 480).

Quantité
CONSULTER

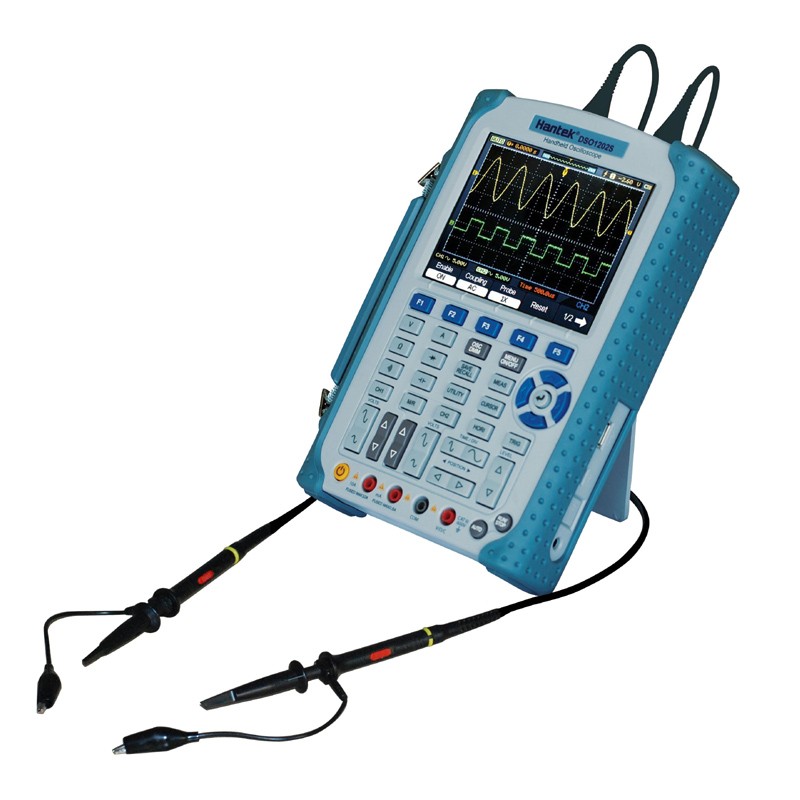

Hantek DSO1202S Oscilloscope portable 200MHZ isolé

  • Isolated level: 1000V CATII, 600V CATIII.
  • High Bandwidth 200MHz Oscilloscope, 1GSa/s sample rate, 6000 Counts DMM with analog barograph and data recorder.
  • 1M Memory Depth.
  • High Refresh Rate (2500 frames).
  • Large 5.6 inch TFT Color Display, High Resolution(640*480), Dual-Window Design --More clear, More detailed.
  • One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
  • Easy-to-use pop-up menu with built-in multi-language help system.
  • 32 Automatic Measurements.
  • Waveform Math: Add, Subtract, Multiply, and Divide.
  • Store and recall over.
  • XY Mode.
  • Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
  • Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
  • Pass-Fail function compares a stored waveform to an unknown input.
  • Average Mode for smoothing waveforms.
  • Square Wave Output (2V, 1kHz) for probe adjustment.
  • USB Host/Device 2.0 full-speed interface, support removeable disk, LAN Option, easy to control by PC or long-distance.
  • Dimensions (mm):245(L)x163(W)x52(H), be carried easily.

Model DSO1202S DSO1152S DSO1122S DSO1062S
Bandwidth 200MHz 150MHz 120MHz 60MHz
Channel 2
Real-Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Record Length 1M
Rish time ≤1.7ns/≤2.3ns/≤2.9ns/≤5.8ns
Timebase Accuracy ±50ppm
Time Base Range 2ns/div-2000s/div 2ns/div-2000s/div 2ns/div-2000s/div 4ns/div-2000s/div
Video Help --
SD Card --
Input Impendence 1MΩ
VOLTS/DIV Range 2mV/div 5V/div
A/D Converter 8bit
Position Range ±50V(5V/div), ±40V(2V/div 500mV/div),
±2V(200mV/div
50mV/div), ±400mV(20mV/div 2mV/div).
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors:
T;
Reciprocal of
T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
The float voltage between BNC and Ground 600V CATIII, 1000V CAT II
The float voltage between each Channel 600V CATIII, 1000V CAT II
The float voltage between Multimeter and Ground 1000V
between input Ports directly 400V CAT II
Input by 10:1 probe 600V CATIII, 1000V CAT II
DMM Max. Resolution 6,000 Counts
Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.6" TFT 16K Color Display, 640*480 dots
Size 245mm x 163mm x 52mm
Weight 1.3KG(Without Package)
Standard Probe PP200Bx2 P7150x2 P7150x2 P7060x2

DMM Mode
Max. Resolution 6000 Counts
DMM Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC:600V, DC: 800V
Max. Input Current AC: 10A, DC:10A
Input Impedence 10MΩ
DMM TrendPlot 1.2M Point
Range Resolution Accuracy Resolution
DC Voltage 60.00mV ±1%±3 digit 10uV
600.0mV 100uV
6.000V 1mV
60.00V 10mV
600.0V 100mV
800V 1V
AC Voltage 60.00mV ±1%±3 digit 10uV
600.0mV 100uV
6.000V 1mV
60.00V 10mV
600.0V 100mV
DC Current 60.00mA ±1%±5 digit 10uA
600.0mA ±1.5%±5 digit 100uA
6.000A 1mA
10.00A 10mA
AC Current 60.00mA ±1%±5 digit 10uA
600.0mA ±1.5%±5 digit 100uA
6.000A 1mA
10.00A 10mA
Resistance 600 Ω ±1%±3 digit 0.1Ω
6.000K Ω
60.00K Ω 10Ω
600.0K Ω 1KΩ
6.000M Ω 10KΩ
60.00M Ω ±1%±5 digit 100KΩ
Capacitance 40.00nF ±2%±5 digit 10pF
400.0nF 100pF
4.000uF 1nF
40.00uF 10nF
400.0uF 100nF
Attention: the smallest capacitance value that can be measured in 5nF
Diode 0V~2.0V
ON-OFF test <10Ω
