Hantek 2D72 Oscilloscope portable 70MHZ 6 en 1 avec générateur de signal aléatoire / fonctions
  • Hantek 2D72 Oscilloscope portable 70MHZ 6 en 1 avec générateur de signal aléatoire / fonctions

Hantek 2D72 Oscilloscope portable 70MHZ 6 en 1 avec générateur de signal aléatoire / fonctions

257.15 €
308,58 € TVA INCLUSE

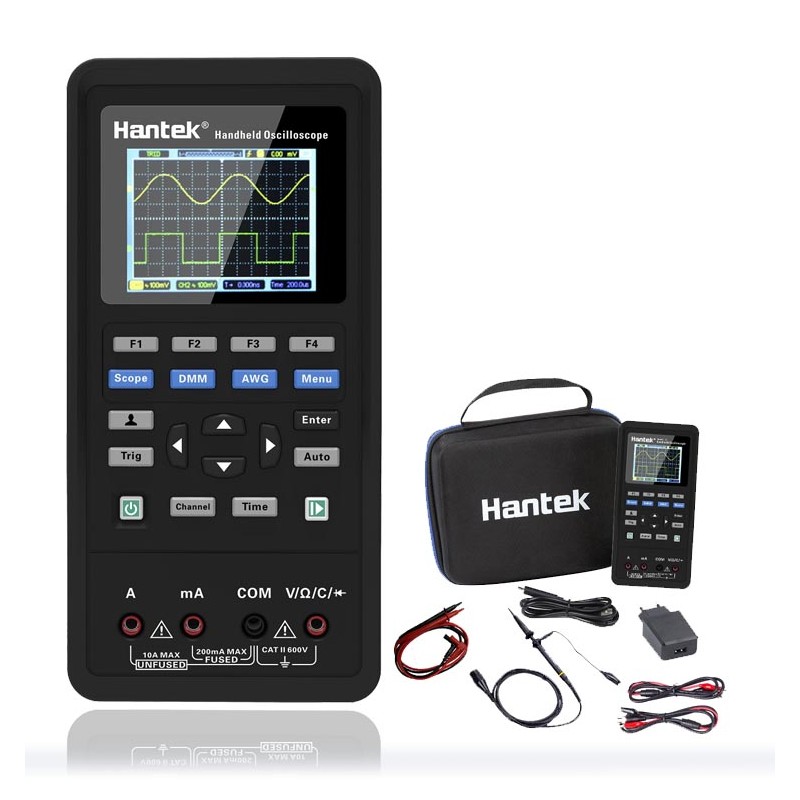

Oscilloscope portable MINI SIZE compact et léger.
2 canaux / 70 MHz / générateur de signaux / multimètre
Taux d'échantillonnage de 250 msa / s (1 canal), 125 msa / s (2 canaux simultanément)
Trois instruments en un: oscilloscope, générateur de signaux et multimètre.
Sa petite taille lui permet d'être facilement tenu d'une seule main.
Écran LCD couleur 2,8 "
Charge rapide via un connecteur de type USB-C.
Clavier simplifié.
Faible consommation et grande autonomie.

Quantité
Expédition en 48/72 heures


SÉRIE HANTEK 2000
MINI OSCILLOSCOPES PORTABLES

  • Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.
  • Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
  • Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
  • Large-capacity lithium battery power supply: 18650 replaceable lithium battery power system, free from replace battery;
  • 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
  • AUTO one-key test: Magic tool and essential function for test newbie;
  • Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;
  • One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
  • Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;
  • Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
  • One-click switching its Chinese and English language menu;
  • Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;
  • Minimalist keyboard design simplify operation, convenient to use;
  • Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
  • Self-calibration function: free from level drift after long time unused;
  • Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
  • Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
  • Function of video help:scan code on back of machine to get help of video course;
  • The PC software supports windows7/8/10 32-bit and 64-bit.


Great function with small size!

Minimalist keyboard design simplify operation, easy to use.


Oscilloscope + Waveform Generator + Multimeter:

Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers.


Waveform Generator Function

A multipurpose instrument that helps complete your tasks more quickly, improves work

efficiency, and meets all your current and future test needs.


Multifunction Digital Multimeter Function

High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry.


Intelligent Charging Control

Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging, convenience and user-friendly.


Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface

18650 replaceable lithium battery power system, free from replace battery;

Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging,

while using, very convenient and handy;

Type C charging interface, after every recharge of 2 hours, the device can be used continuously for

a full day or standby more than two months;

Type C power + data transfer interface, can share the charger and data cable with your mobile phone;


Suspended Support, Multiangular Adjusting, Let you Enjoy Convenience

Function Review


Connectors Review


Interface Review


Powerful PC software

Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement,

waveform printing and saving functions, REF and Math functions, Pass / Fail functions.


The waveform generator is able to draw and output arbitrary waveforms on its PC software


Its multimeter with recorder function, which support the measurement resultsto nerate the curves

and analyze them.


Accessories


20180904143214_6659.jpg 20160421132630_5094.jpg
20190103095610_7256.jpg 20160530084253_9178.jpg

Specification

Model Hantek2D72 Hantek2D42 Hantek2C72 Hantek2C42
Oscilloscope Mode
Bandwidth 70MHz 40MHz 70MHz 40MHz
Channel 2CH+DMM+AWG 2CH+DMM+AWG 2CH+DMM 2CH+DMM
Horizontal
Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation (sin x)/x
Record Length Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range 5ns/div~500s/div 1, 2, 5 sequence
Vertical
A/D Converter 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range 10mV/div~10V/divat input BNC
Low Frequency Response (-3db) ≤10Hz at BNC
Rise Time at BNC, typical ≤5ns
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes Normal
Trigger
Type Edge
Mode Auto, Normal, single
Level ±4 divisions from center of screen
Trigger Level Accuracy 0.2div × volts/div within ±4 divisions from center of screen
Slope Rising, Falling, Rising & Falling
Source CH1/CH2
Input
Coupling DC, AC or GND
Input Impedance, 25pF±3 pF, 1MΩ±2%
DC coupled
Probe Attenuation 1X, 10X
Supported Probe Attenuation Factors 1X, 10X, 100X, 1000X
Maximum Input Voltage 150VRMS
Measurement
Cursor Voltage difference between cursors: V
Time difference between cursors: T
Automatic Measurements Frequency, Amplitude
Arbitrary Waveform Generator Mode
Waveform Frequency Sine: 1Hz~25MHz - -
Square: 1Hz~10MHz - -
Ramp: 1Hz~1MHz - -
EXP: 1Hz~5MHz - -
Sampling 250MSa/s - -
Amplitude 2.5Vpp(50Ω) - -
5Vpp(High impedance) - -
Frequency Resolution 0.10% - -
Channel 1CH waveform output - -
Waveform Depth 512Sa - -
Vertical Resolution 12 bit - -
Output Impedance 50 Ω - -
DMM
Maximum Resolution 4000 Counts
DMM Testing Modes Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input Voltage AC:600V, DC: 800V
Maximum Input Current AC: 10A, DC:10A
Input Impedance 10MΩ
Measurement Term Range Accuracy Resolution
DC Voltage 400.00mV ± (0.8% + 5) 100uV
4.000V 1mV
40.00V 10mV
400.0V 100mV
600.0V ± (1% + 2) 1V
Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage 4.000V ± (1.2% + 5) 1mV
40.00V 10mV
400.0V 100mV
600.0V ±(1.5% + 5) 1V
Frequency: 40Hz~400Hz;
Frequency of 400V and 600V: 40Hz~100Hz
DC Current 40.00mA ± (1% + 2) 10uA
200.0mA ± (1.5% + 2) 100uA
4.000A ± (1.8% + 2) 1mA
10.00A ± (3% + 2) 10mA
Overload protection:
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
AC Current 40.00mA ± (1.3% + 2) 10uA
400.0mA ± (1.8% + 2) 100uA
4.000A ± (2% + 3) 1mA
10.00A ± (3% + 5) 10mA
Frequency: 40Hz~400Hz;
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance 400.0Ω ±(1% + 3) 0.1Ω
4.000KΩ ±(1.2% + 5)
60.00KΩ 10Ω
400.0KΩ 100Ω
4.000MΩ 1KΩ
40.00MΩ ± (1.5%±3) 10KΩ
Overload protection: 220Vrms
Capacitance 40.00nF ±(3% + 5) 10pF
400.0nF 100pF
4.000uF 1nF
40.00uF 10nF
100.0uF 100nF
Overload protection: 220Vrms
Diode 0V~1.0V
On-Off <50Ω
General Specifications
Display
Display Type 2.8 inch64K color TFT
Display Resolution 320 horizontal by 240 vertical pixels
Display Contrast Adjustable
Power Supply
Supply Voltage 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
Power Consumption <2.5W
Fuse T, 3A
Battery 2600mA*2
Environmental
Operating Temperature 0~50 °C (32~122 °F)
Storage Temperature -40~+71 °C (-40~159.8 °F)
Humidity ≤+104(≤+40°C): ≤90% relative humidity
106~122 (+41°C ~50°C): ≤60% relative humidity
Cooling Method Convection
Altitude Operating and 3,000m (10,000 feet)
Nonoperating
Mechanical Shock Random Vibration 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
Nonoperating 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
Operating 50g, 11ms, half sine
Mechanical
Dimension 199 x 98x 40mm (L x W x H)
Weight 624g
Standard Accessories Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1 Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1

HANTEK
2D72

Fiche technique

Canaux d'oscilloscope
2
Bande passante de l'oscilloscope
70
Serie
2000
Multimètre
Oui
Générateur de signal / Fonctions
Oui

Références spécifiques

Téléchargement

Pour télécharger ces fichiers, vous devez avoir acheté le produit auparavant et être connecté à votre compte.

(FR) Manuel basique

Manuel basique de sécurité et de démarrage - French

Téléchargement (159.77KB)

(EN) Manual abbreviated

Basic Safety Manual and Startup - English

Téléchargement (158.8KB)

(FR) Manuel Serie 2000

Manuel d'utilisation Hantek 2000 - French

Téléchargement (476.89KB)

(EN) Hantek 2000

Hantek 2000 Series Extended Manual - English

Téléchargement (1.09MB)
