Hantek 2D42 Oscilloscope portable 40MHZ 6 en 1 avec générateur de signal aléatoire / fonctions

SÉRIE HANTEK 2000
MINI OSCILLOSCOPES PORTABLES

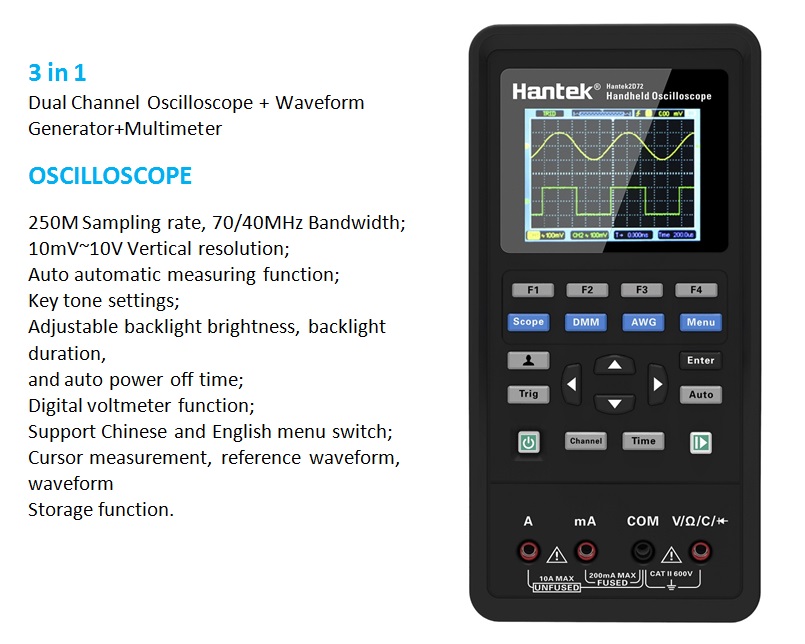

• Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.
• Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
• Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
• Large-capacity lithium battery power supply: 18650 replaceable lithium battery power system, free from replace battery;
• 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
• AUTO one-key test: Magic tool and essential function for test newbie;
• Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;
• One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
• Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;
• Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
• One-click switching its Chinese and English language menu;
• Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;
• Minimalist keyboard design simplify operation, convenient to use;
• Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
• Self-calibration function: free from level drift after long time unused;
• Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
• Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
• Function of video help：scan code on back of machine to get help of video course;
• The PC software supports windows7/8/10 32-bit and 64-bit.

Great function with small size!

Minimalist keyboard design simplify operation, easy to use.

Oscilloscope + Waveform Generator + Multimeter:

Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers.

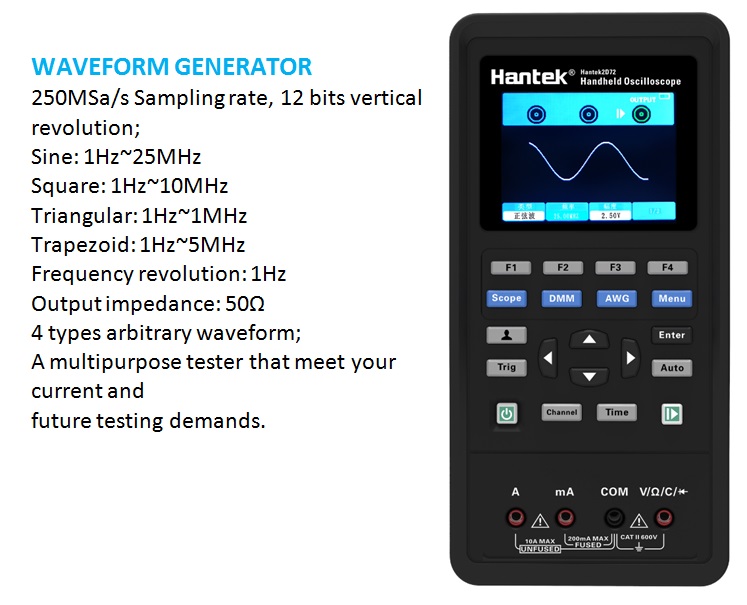

Waveform Generator Function

A multipurpose instrument that helps complete your tasks more quickly, improves work

efficiency, and meets all your current and future test needs.

Multifunction Digital Multimeter Function

High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry.

Intelligent Charging Control

Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging, convenience and user-friendly.

Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface

18650 replaceable lithium battery power system, free from replace battery;

Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging,

while using, very convenient and handy;

Type C charging interface, after every recharge of 2 hours, the device can be used continuously for

a full day or standby more than two months;

Type C power + data transfer interface, can share the charger and data cable with your mobile phone;

Suspended Support, Multiangular Adjusting, Let you Enjoy Convenience

Function Review

Connectors Review

Interface Review

Powerful PC software

Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement,

waveform printing and saving functions, REF and Math functions, Pass / Fail functions.

The waveform generator is able to draw and output arbitrary waveforms on its PC software

Its multimeter with recorder function, which support the measurement resultsto nerate the curves

and analyze them.

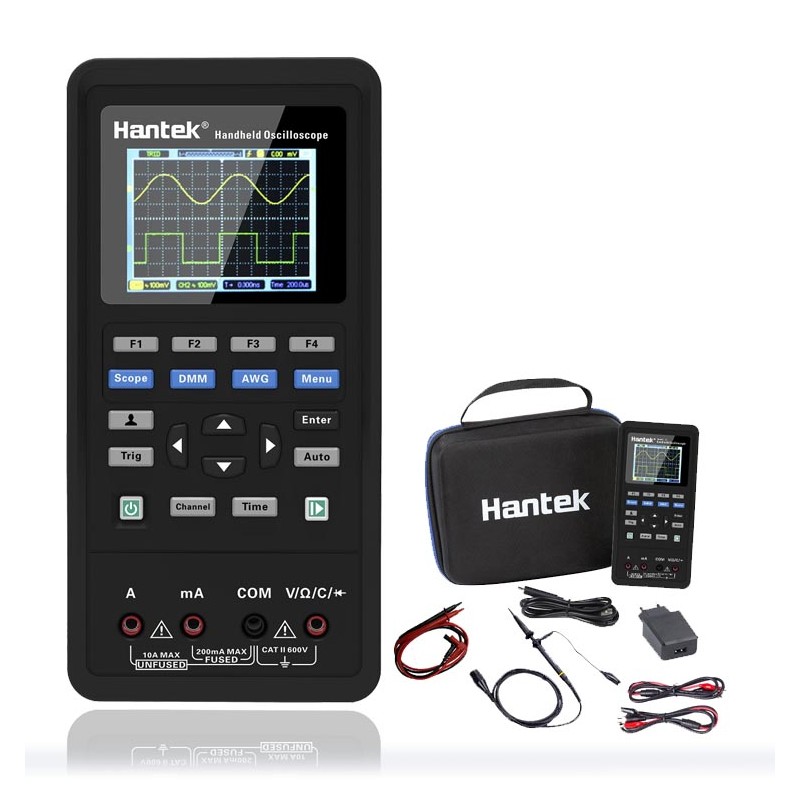

Accessories

Specification

Model	Hantek2D72	Hantek2D42	Hantek2C72	Hantek2C42
Oscilloscope Mode
Bandwidth	70MHz	40MHz	70MHz	40MHz
Channel	2CH+DMM+AWG	2CH+DMM+AWG	2CH+DMM	2CH+DMM
Horizontal
Sample Rate Range	250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation	(sin x)/x
Record Length	Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range	5ns/div~500s/div 1, 2, 5 sequence
Vertical
A/D Converter	8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range	10mV/div~10V/divat input BNC
Low Frequency Response (-3db)	≤10Hz at BNC
Rise Time at BNC, typical	≤5ns
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes	Normal
Trigger
Type	Edge
Mode	Auto, Normal, single
Level	±4 divisions from center of screen
Trigger Level Accuracy	0.2div × volts/div within ±4 divisions from center of screen
Slope	Rising, Falling, Rising & Falling
Source	CH1/CH2
Input
Coupling	DC, AC or GND
Input Impedance,	25pF±3 pF, 1MΩ±2%
DC coupled
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factors	1X, 10X, 100X, 1000X
Maximum Input Voltage	150VRMS
Measurement
Cursor	Voltage difference between cursors: △V
	Time difference between cursors: △T
Automatic Measurements	Frequency, Amplitude
Arbitrary Waveform Generator Mode
Waveform Frequency	Sine: 1Hz~25MHz		-	-
	Square: 1Hz~10MHz		-	-
	Ramp: 1Hz~1MHz		-	-
	EXP: 1Hz~5MHz		-	-
Sampling	250MSa/s		-	-
Amplitude	2.5Vpp(50Ω)		-	-
	5Vpp(High impedance)		-	-
Frequency Resolution	0.10%		-	-
Channel	1CH waveform output		-	-
Waveform Depth	512Sa		-	-
Vertical Resolution	12 bit		-	-
Output Impedance	50 Ω		-	-
DMM
Maximum Resolution	4000 Counts
DMM Testing Modes	Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input Voltage	AC:600V, DC: 800V
Maximum Input Current	AC: 10A, DC:10A
Input Impedance	10MΩ
Measurement Term	Range	Accuracy	Resolution
DC Voltage	400.00mV	± (0.8% + 5)	100uV
	4.000V		1mV
	40.00V		10mV
	400.0V		100mV
	600.0V	± (1% + 2)	1V
	Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage	4.000V	± (1.2% + 5)	1mV
	40.00V		10mV
	400.0V		100mV
	600.0V	±(1.5% + 5)	1V
	Frequency: 40Hz~400Hz;
	Frequency of 400V and 600V: 40Hz~100Hz
DC Current	40.00mA	± (1% + 2)	10uA
	200.0mA	± (1.5% + 2)	100uA
	4.000A	± (1.8% + 2)	1mA
	10.00A	± (3% + 2)	10mA
	Overload protection:
	self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
AC Current	40.00mA	± (1.3% + 2)	10uA
	400.0mA	± (1.8% + 2)	100uA
	4.000A	± (2% + 3)	1mA
	10.00A	± (3% + 5)	10mA
	Frequency: 40Hz~400Hz;
	self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance	400.0Ω	±(1% + 3)	0.1Ω
	4.000KΩ	±(1.2% + 5)	1Ω
	60.00KΩ		10Ω
	400.0KΩ		100Ω
	4.000MΩ		1KΩ
	40.00MΩ	± (1.5%±3)	10KΩ
	Overload protection: 220Vrms
Capacitance	40.00nF	±(3% + 5)	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	100.0uF		100nF
	Overload protection: 220Vrms
Diode	0V~1.0V
On-Off	<50Ω
General Specifications
Display
Display Type	2.8 inch64K color TFT
Display Resolution	320 horizontal by 240 vertical pixels
Display Contrast	Adjustable
Power Supply
Supply Voltage	100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
Power Consumption	<2.5W
Fuse	T, 3A
Battery	2600mA*2
Environmental
Operating Temperature	0~50 °C (32~122 °F)
Storage Temperature	-40~+71 °C (-40~159.8 °F)
Humidity	≤+104℉(≤+40°C): ≤90% relative humidity
	106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
Cooling Method	Convection
Altitude	Operating and	3,000m (10,000 feet)
	Nonoperating
Mechanical Shock	Random Vibration	0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
	Nonoperating	2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
	Operating	50g, 11ms, half sine
Mechanical
Dimension	199 x 98x 40mm (L x W x H)
Weight	624g
Standard Accessories	Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1	Probe*1,Clip Probe*2, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1	Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1	Probe*1,Clip Probe*1, Type Charging Cable*1, Power Adapter*1, Multimeter Probe*1
