Hantek 2D82AUTO KIT PREMIUM Mini oscilloscope portable pour l'automobile
- Mini oscilloscope portable pour automobile.
- Multifonction: oscilloscope, générateur de signaux et multimètre dans un seul appareil.
- Interface de chargement USB de type C, grande autonomie pouvant aller jusqu'à une journée d'utilisation ou deux mois de repos.
- Écran couleur haute définition de 2,8 "
- Clavier simple et intuitif pour accéder rapidement à toutes les fonctions.
- Base de données de pré-ensembles de signaux automobiles.
Hantek 2D82AUTO Mini oscilloscope portable pour l'automobile
KIT PREMIUM
- Mini oscilloscope portable pour automobile.
- Multifonction: oscilloscope, générateur de signaux et multimètre dans un seul appareil.
- Interface de chargement USB de type C, grande autonomie pouvant aller jusqu'à une journée d'utilisation ou deux mois de repos.
- Écran couleur haute définition de 2,8 "
- Clavier simple et intuitif pour accéder rapidement à toutes les fonctions.
- Base de données de pré-ensembles de signaux automobiles.
- NOTE:
- La base de données inclut les paramètres pour chaque type de signal, mais pas les captures de celui-ci.
1 x Mini oscilloscope portable à 2 canaux et 80 MHz
1 x Câble d'alimentation USB de type C
1 x Adaptateur d'alimentation
1 x Mallette de transport rigide (pour l'oscilloscope)
1 x Sondes multimètre (1 rouge, 1 noire)
2 x Sonde avec connecteur BNC sur connecteur crocodile
2 x Câble BNC vers connecteur banane 4mm
2 x Sonde inductive pour la mesure de l'allumage secondaire
2 x Ensemble de sondes d'acupuncture
2 x Extension de bougie
2 x Atténuateur 20:1
2 x grandes pinces crocodile avec connecteur de 4 mm
1 x câble de démarrage avec connecteur de capteur
1 x câble de pont de 2,8 mm à 6 voies
1 x câble de pont de 2.3mm à 6 voies
1 x câble de pont de 1,5 mm à 6 voies
1 x câble de pont de 1,0 mm à 6 voies
1 x Pince ampèremétrique BNC AC / DC 65A
1 x Pince ampèremétrique BNC AC / DC 650A
DESCRIPTION
With more than 80 kinds of car testing.
- First test projects: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).
- Start & Charge: Charging circuit, current and voltage.
- Actuator: Gasoline / Diesel.
- Bus Detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.
- Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position. . .
- Ignition: Primary/Secondary.
- Oscilloscope:2 channels oscilloscope, 80MHz bandwidth, 250M sampling rate.

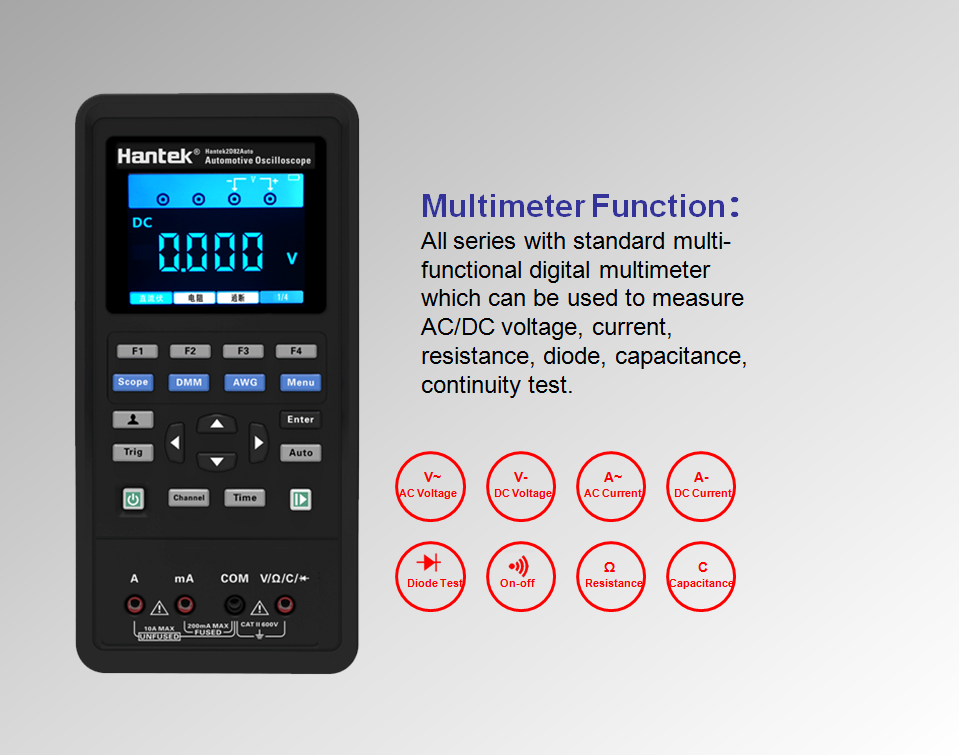

- Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
- Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
Primary ignition voltage and crankshaft sensor test Charging circuit current and voltage test
Primary ignition and secondary ignition test Primary ignition current test
Secondary ignition test Cylinder relative pressure test
Crankshaft and camshaft sensor test ABS wheel speed sensor test

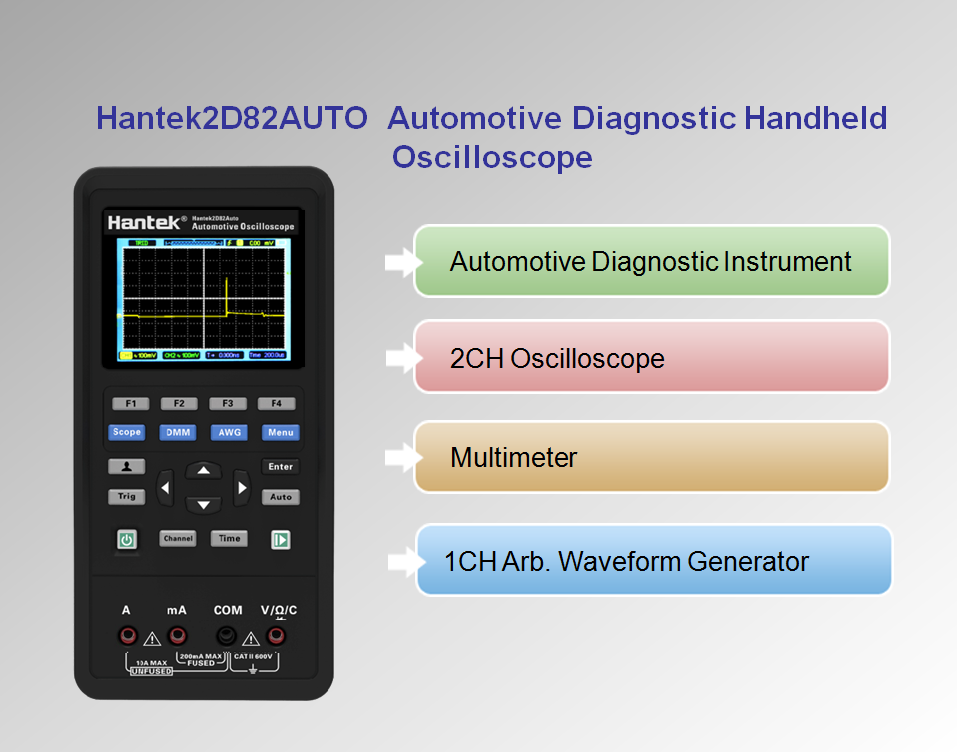

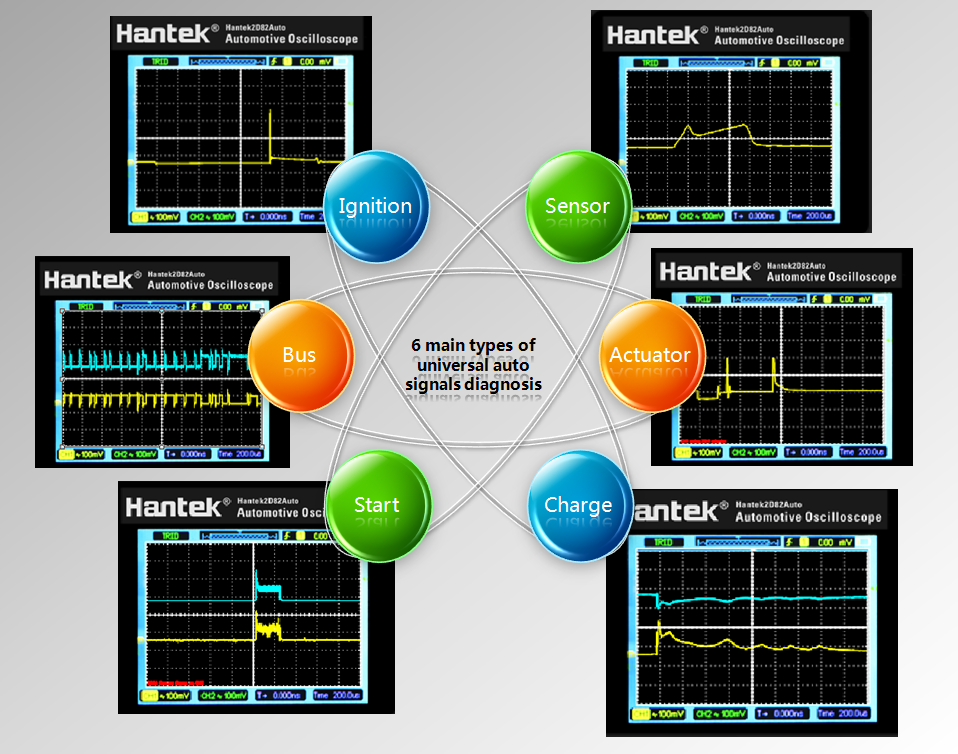

Automotive Diagnostic, 4 in 1
More than 80 kinds of car testing
80MHz Bandwidth,10mV~10V Vertical resolution
High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry
A multipurpose instrument that helps complete your tasks more quickly, improves work
efficiency, and meets all your current and future test needs.

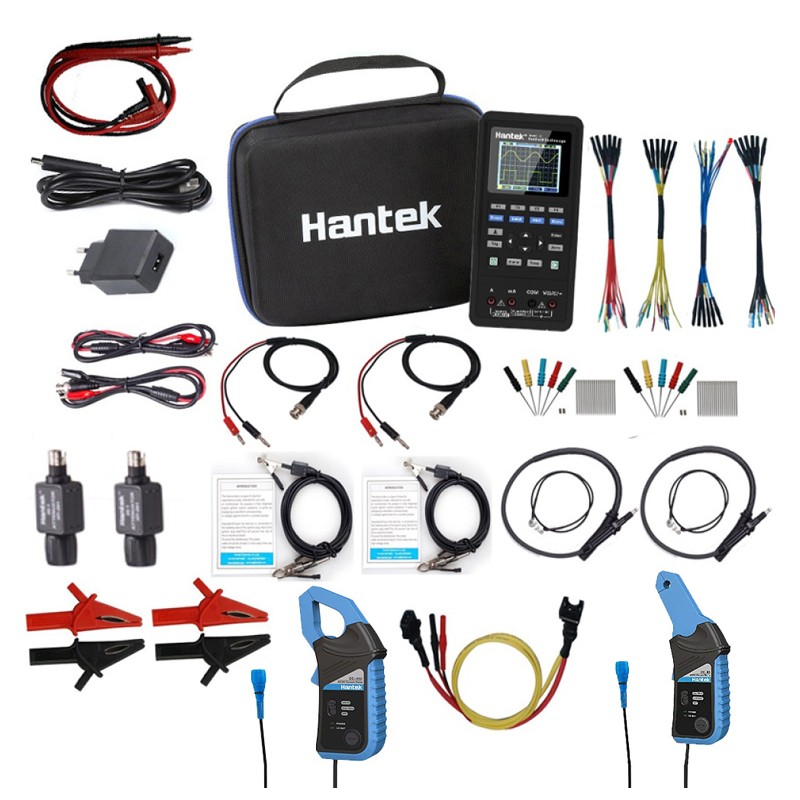

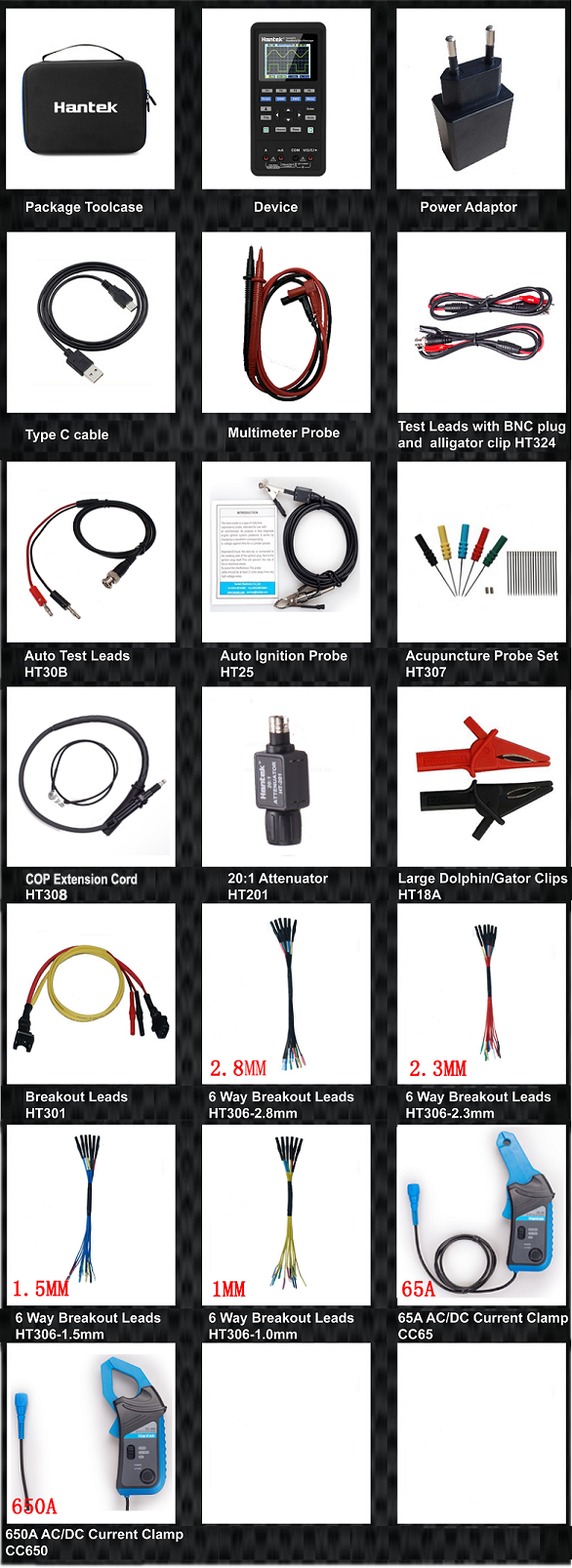

Test accessories
(The number of accessories included depends on the kit, see description)
Model | Hantek2D82AUTO | |||
Vehicle Testing Mode | ||||
Vehicle Diagnosis | Vehicle Diagnostic Function | Ignition | Primary Ignition (Voltage) | |
Primary Ignition(current) | ||||
Primary Ignition(Voltage& Current) | ||||
Primary Ignition (Crankshaft Senser) | ||||
Primary Ignition&SecondaryIgnition | ||||
Secondary | Secondary Ignition Distributor Type (Plug Lead) | |||
Secondary Ignition Distributor Type (King Lead) | ||||
Secondary DIS (Positive-fired) | ||||
Secondary DIS or CPC (Negative-fired)) | ||||
Secondary Coil Output Diagnosis | ||||
Secondary Ignition&Primary Ignition | ||||
Sensors | Air Flow Meter | Air Flow Meter (Hot Wire) | ||
Air Flow Meter (Air Vane) | ||||
Air FlowSensor (BOSCH Diesel) | ||||
Air Intake PressureSensor (BOSCH Diesel) | ||||
Camshaft | Camshaft (Inductive) | |||
Camshaft (AC Excited) | ||||
Camshaft (Hall Effect) | ||||
Camshaft (BOSCH Common Rail Diesel) | ||||
Crankshaft | Crankshaft Inductive Running | |||
Crankshaft Inductive Cranking | ||||
Crankshaft Hall Effect | ||||
Crankshaft Sensor &Primary Ignition | ||||
Distributor | Distributor Pick-up (Hall Effect) | |||
Distributor Inductive Pick-up Cranking | ||||
Distributor Inductive Pick-up Running | ||||
Lambda Sensors | Lambda Sensor Titania | |||
Lambda Sensor Zirconia | ||||
Lambda Sensor Zirconia Pre & Post cat | ||||
Throttle Position | Throttle Position Potentiometer | |||
Throttle Position Switch | ||||
Throttle Pedal Switch (Bosch Diesel) | ||||
ABS Digital Speed Sensor | ||||
ABS Analog Speed Sensor | ||||
Coolant Temperature (5V) | ||||
Coolant Temperature (GM/Vauxhall Simtec | ||||
Crash Sensor | ||||
MAP Analog | ||||
MAP Digital | ||||
Hall Effect Road Speed Sensor | ||||
Accelerator Pedal (Bosch Diesel) | ||||
Bus Diagnosis | CAN Bus | CAN Bus Data View | ||
CAN Bus Signal Integrity | ||||
CAN Bus LH Long Capture | ||||
LIN Bus | LIN Bus | |||
Engine | Petrol | Single-point Injector (Voltage) | ||
Single-point Injector (Current) | ||||
Multi-point Injector (Voltage) | ||||
Multi-point Injector (Current) | ||||
Injector Voltage & Current | ||||
Injector Current & Primary Ignition | ||||
Diesel | Common Rail Diesel (Current) | |||
Injector Bosch CDi 3 (Current) | ||||
Injector Bosch Diesel (Idling) | ||||
Injector Bosch Diesel (Accelerating) | ||||
Diesel Glow Plugs | ||||
Electronic Fuel Pump | ||||
Carbon Canister Solenoid Valve | ||||
ERG Recirculation Solenoid Valve | ||||
Stepper Motor Example 1 | ||||
Stepper Motor Example 2 | ||||
Idle Speed Control Valve (Rotary) | ||||
Idle Speed Control Valve (Electromagmetic) | ||||
Throttle Servomotor (Idling) | ||||
Throttle Servomotor (Accelerating) | ||||
Bosch CDi3 Quantity Control Valve | ||||
Bosch CDi3 Pressure Regulator Valve | ||||
Variable-Speed Cooling Fan On | ||||
Variable-Speed Cooling Fan Off | ||||
Variable Camshaft Valve Timing | ||||
Startup & Charge | Charging Circuits | Charging Circuits Current/Voltage | ||
Charging Circuits Current/Voltage Starting 24V | ||||
Charging Circuits Current/Voltage Idling 24V | ||||
Charging Circuits Alternator AC Ripple/Diode Diagnosis | ||||
Relative Compression Petrol | ||||
Relative Compression Diesel | ||||
Starting Voltage Drop | ||||

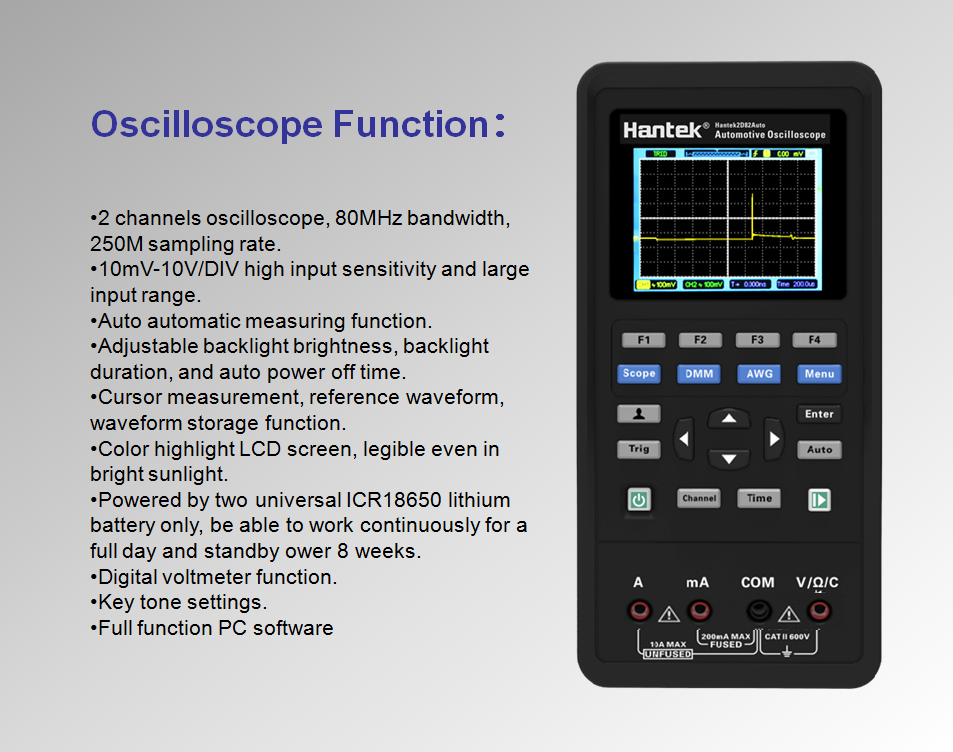

Oscilloscope Mode | ||||
Bandwidth | 80MHz | |||
Sample Rate Range | 250MSa/s(Single-channel), 125MSa/s(Dual-channel) | |||
Waveform Interpolation | (sin x)/x | |||
Record Length | 3K samples per dual-channel | |||
SEC/DIV Range | 5ns/div~500s/div 1, 2, 5 sequence | |||
Vertical | ||||
A/D Converter | 8-bit resolution,each channel sampled simultaneously | |||
VOLTS/DIV Range | 10mV/div~10V/divat input BNC | |||
Acquisition | ||||
Acquisition Modes | Normal | |||
Trigger | ||||
Type | Edge | |||
Mode | Auto, Normal, single | |||
Level | ±4 divisions from center of screen | |||
Trigger Level Accuracy | 0.2div × volts/div within ±4 divisions from center of screen | |||
Slope | Rising, Falling, Rising & Falling | |||
Source | CH1/CH2 | |||
Input | ||||
Coupling | DC, AC or GND | |||
Input Impedance, | 25pF±3 pF, 1MΩ±2% | |||
DC coupled | ||||
Probe Attenuation | 1X, 10X | |||
Supported Probe Attenuation Factors | 1X, 10X, 100X, 1000X | |||
Maximum Input Voltage | 150VRMS | |||
Measurement | ||||
Cursor | Voltage difference between cursors: △V | |||
Time difference between cursors: △T | ||||
Automatic Measurements | Frequency, Amplitude | |||

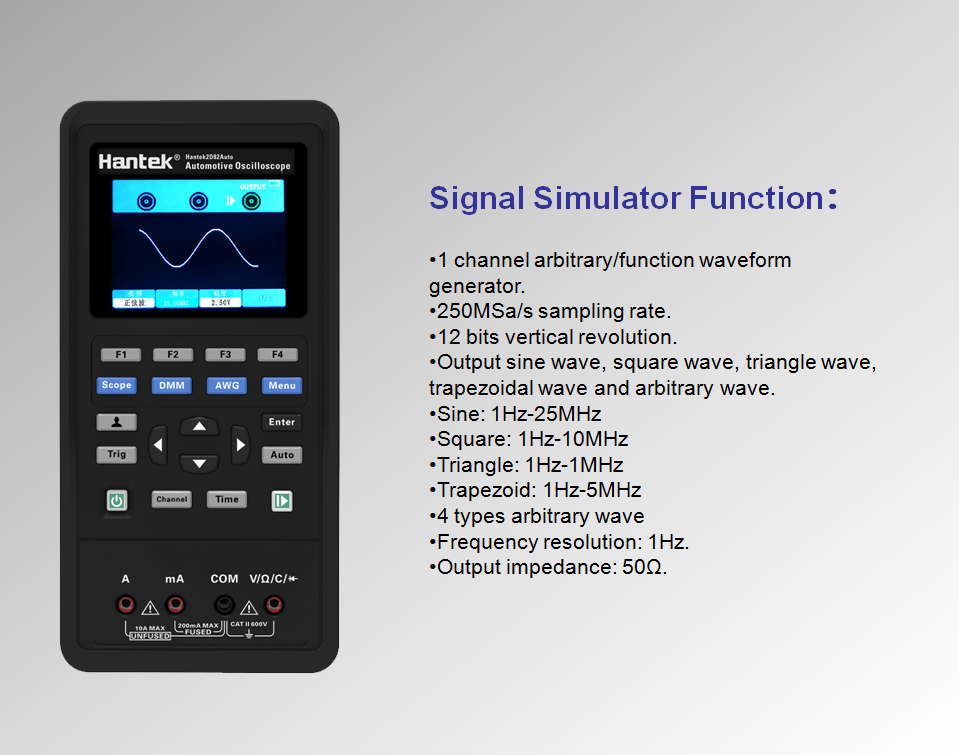

Arbitrary Waveform Generator Mode | ||||
Waveform Frequency | Sine: 1Hz~25MHz | |||
Square: 1Hz~10MHz | ||||
Ramp: 1Hz~1MHz | ||||
EXP: 1Hz~5MHz | ||||
Sampling | 250MSa/s | |||
Amplitude | 2.5Vpp(50Ω) | |||
5Vpp(High impedance) | ||||
Frequency Resolution | 0.001 | |||
Channel | 1CH waveform output | |||
Waveform Depth | 512Sa | |||
Vertical Resolution | 12 bit | |||
Frequency Stability | <30ppm | |||
Output Impedance | 50 Ω | |||
DMM Testing Modes | ||||
Maximum Resolution | 4000 Counts | |||
DMM Testing Modes | Voltage,Current,Resistance,Capacitance,Diode &On-Off | |||
Maximum Input Voltage | AC:600V, DC: 800V | |||
Maximum Input Current | AC: 10A, DC:10A | |||
Input Impedance | 10MΩ | |||
Measurement Term | Range | Accuracy | Resolution | |
DC Voltage | 400.00mV | ± (0.8% + 5) | 100uV | |
4.000V | 1mV | |||
40.00V | 10mV | |||
400.0V | 100mV | |||
600.0V | ± (1% + 2) | 1V | ||
Overload protection: 400mV: 250V, other: 600Vrms. | ||||
AC Voltage | 4.000V | ± (1.2% + 5) | 1mV | |
40.00V | 10mV | |||
400.0V | 100mV | |||
600.0V | ±(1.5% + 5) | 1V | ||
Frequency: 40Hz~400Hz; | ||||
Frequency of 400V and 600V: 40Hz~100Hz | ||||
DC Current | 40.00mA | ± (1% + 2) | 10uA | |
200.0mA | ± (1.5% + 2) | 100uA | ||
4.000A | ± (1.8% + 2) | 1mA | ||
10.00A | ± (3% + 2) | 10mA | ||
Overload protection: | ||||
self restoring fuse: 200mA/250V, 4A and 10A range no fuse. | ||||
AC Current | 40.00mA | ± (1.3% + 2) | 10uA | |
400.0mA | ± (1.8% + 2) | 100uA | ||
4.000A | ± (2% + 3) | 1mA | ||
10.00A | ± (3% + 5) | 10mA | ||
Frequency: 40Hz~400Hz; | ||||
self restoring fuse: 200mA/250V, 4A and 10A range no fuse. | ||||
Resistance | 400.0Ω | ±(1% + 3) | 0.1Ω | |
4.000KΩ | ±(1.2% + 5) | 1Ω | ||
60.00KΩ | 10Ω | |||
400.0KΩ | 100Ω | |||
4.000MΩ | 1KΩ | |||
40.00MΩ | ± (1.5%±3) | 10KΩ | ||
Overload protection: 220Vrms | ||||
Capacitance | 40.00nF | ±(3% + 5) | 10pF | |
400.0nF | 100pF | |||
4.000uF | 1nF | |||
40.00uF | 10nF | |||
100.0uF | 100nF | |||
Overload protection: 220Vrms | ||||
Diode | 0V~2.0V | |||
On-Off | <50Ω | |||
General Specifications | ||||
Display | ||||
Display Type | 2.8 inch64K color TFT | |||
Display Resolution | 320 horizontal by 240 vertical pixels | |||
Display Contrast | Adjustable | |||
Power Supply | ||||
Supply Voltage | 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A | |||
Power Consumption | <2.5W | |||
Fuse | T, 3A | |||
Battery | 2600mA*2 | |||
Environmental | ||||
Operating Temperature | 0~50 °C (32~122 °F) | |||
Storage Temperature | -40~+71 °C (-40~159.8 °F) | |||
Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | |||
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | ||||
Cooling Method | Convection | |||
Altitude | Operating and | 3,000m (10,000 feet) | ||
Nonoperating | ||||
Mechanical Shock | Random Vibration | 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis | ||
Nonoperating | 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis | |||
Operating | 50g, 11ms, half sine | |||
Mechanical | ||||
Dimension | 199 x 98x 40mm (L x W x H) |
Fiche technique
- Canaux d'oscilloscope
- 2
- Bande passante de l'oscilloscope
- 80
- Serie
- 2D82AUTO
- Automobile
- Il a des fonctions ou des accessoires spécifiques pour l'automobile
- Multimètre
- Oui
- Générateur de signal / Fonctions
- Oui
