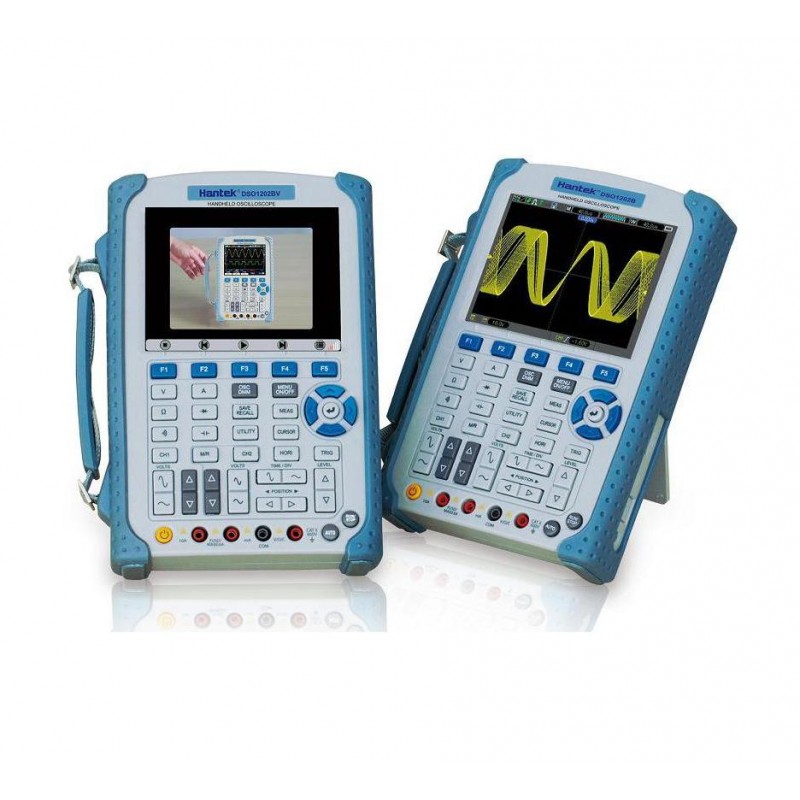

Hantek DSO1062BV Oscilloscope Portable 60MHZ
605.93 €
727,12 € TVA INCLUSE
Oscilloscope avec bande passante de 60 MHz.
Intégre l’aide vidéo et la mémoire flash SD 2G.
Fréquence d'échantillonnage de 1GSa / s.
1M de profondeur de mémoire.
6000 comptes DMM avec bargraphe analogique.
Écran LCD TFT couleur de 5,6 pouces, haute résolution (640 * 480).
Hantek DSO1062BV Oscilloscope Portable 60MH
- High Bandwidth 60MHz-200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
- Built in Video Help and 2G SD flash memory.
- 1M Memory Depth.
- High Refresh Rate (2500 frames).
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
- One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
- Easy-to-use pop-up menu with built-in multi-language help system.
- 32 Automatic Measurements.
- Waveform Math: Add, Subtract, Multiply, and Divide.
- Store and recall over.
- Automatic cursor tracking measurements.
- XY Mode.
- Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
- Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
- Pass/Fail function compares a stored waveform to an unknown input.
- Average Mode for smoothing waveforms.
- Square Wave Output (2V, 1kHz) for probe adjustment.
- USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance.
- Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.
| Model | DSO1202BV | DSO1102BV | DSO1062BV |
| Bandwidth | 200MHz | 100MHz | 60MHz |
| Channel | 2 | ||
| Real-Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| Record Length | 1M | ||
| Rish time | ≤1.7ns/≤3.5ns/≤5.8ns | ||
| Timebase Accuracy | ±50ppm | ||
| Time Base Range | 2ns/div-40s/div / 4ns/div-40s/div / 4ns/div-40s/div | ||
| Video Help | Yes | ||
| SD Card | 2GB | ||
| Input Impandance | 1MΩ | ||
| VOLTS/DIV Range | 2mV/div～5V/div | ||
| A/D Converter | 8bit | ||
| Offset Range | ±50V(5V/div), ±40V(2V/div ～ 500mV/div), ±2V(200mV/div ～ 50mV/div), ±400mV(20mV/div ～ 2mV/div) |
||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2 | ||
| Math | +, -, x, ÷, FFT, Invert | ||
| Cursor Measurement | Voltage difference between cursors: △ V; Time difference between cursors: △ T; Reciprocal of △ T in Hertz (1/ΔT); |
||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF | ||
| DMM Max. Resolution | 6,000 Counts | ||
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC: 600V, DC: 800V | ||
| Max. Input Current | AC:10A , DC: 10A | ||
| Max. Input Impandance | 10MΩ | ||
| Display | 5.6"TFT 16K Color Display, 640*480 dots | ||
| Size | 245mm x 163mm x 52mm | ||
| Weight | 1.3KG(Without Package) | ||
| Standard Probe | PP200x2 | PP150x2 | PP80x2 |
| DMM Mode | |||
| Max. Resolution | 6000 Counts | ||
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC:600V, DC: 800V | ||
| Max. Input Current | AC: 10A, DC:10A | ||
| Input Impedance | 10MΩ | ||
| DMM TrendPlot | 1.2M Point | ||
| Range | Resolution | Accuracy | Resolution |
| DC Voltage | 60.00mV | ±1%±3 digit | 10uV |
| 600.0mV | 100uV | ||
| 6.000V | 1mV | ||
| 60.00V | 10mV | ||
| 600.0V | 100mV | ||
| 800V | 1V | ||
| AC Voltage | 60.00mV | ±1%±3 digit | 10uV |
| 600.0mV | 100uV | ||
| 6.000V | 1mV | ||
| 60.00V | 10mV | ||
| 600.0V | 100mV | ||
| DC Current | 60.00mA | ±1%±5 digit | 10uA |
| 600.0mA | ±1.5%±5 digit | 100uA | |
| 6.000A | 1mA | ||
| 10.00A | 10mA | ||
| AC Current | 60.00mA | ±1%±5 digit | 10uA |
| 600.0mA | ±1.5%±5 digit | 100uA | |
| 6.000A | 1mA | ||
| 10.00A | 10mA | ||
| Resistance | 600 Ω | ±1%±3 digit | 0.1Ω |
| 6.000K Ω | 1Ω | ||
| 60.00K Ω | 10Ω | ||
| 600.0K Ω | 1KΩ | ||
| 6.000M Ω | 10KΩ | ||
| 60.00M Ω | ±1%±5 digit | 100KΩ | |
| Capacitance | 40.00nF | ±2%±5 digit | 10pF |
| 400.0nF | 100pF | ||
| 4.000uF | 1nF | ||
| 40.00uF | 10nF | ||
| 400.0uF | 100nF | ||
| Attention: the smallest capacitance value that can be measured in 5nF | |||
| Diode | 0V~2.0V | ||
| ON-OFF test | <10Ω |
||
DSO1062BV
Fiche technique
- Canaux d'oscilloscope
- 2
- Bande passante de l'oscilloscope
- 60
- Multimètre
- Oui
