Hantek iDSO1070A Oscilloscope sans fil 70MHZ
270.11 €
324,13 € TVA INCLUSE
Oscilloscope sans fil 70MHZ / 2 canaux.

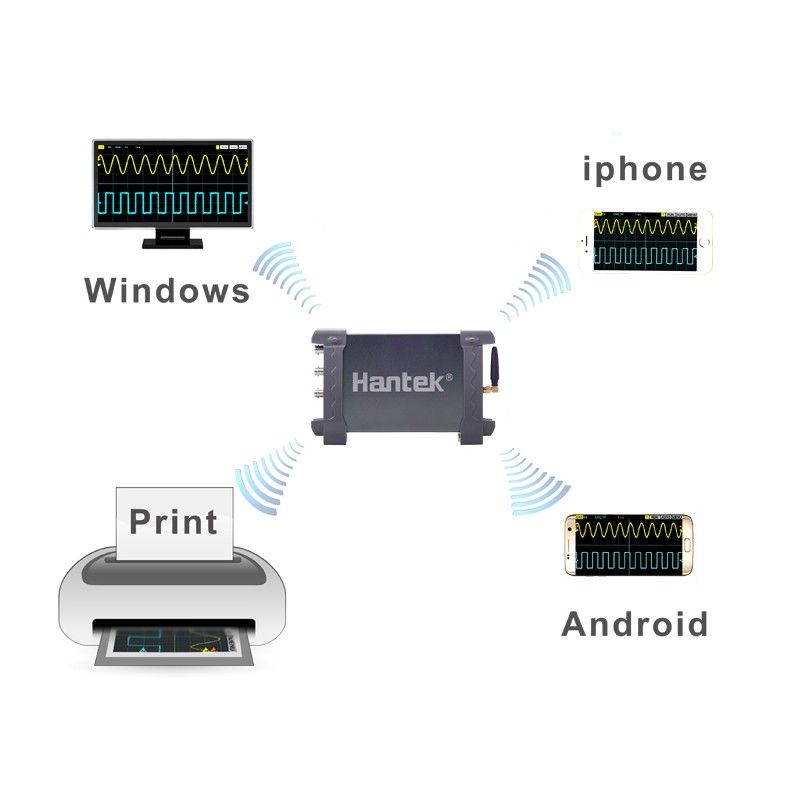

iPhone / iPad / Android / Windows.
Contrôle multi-touch.
Communication WIFI (et support USB).
Connexion directe WIFI / Routeur de connexion.
Batterie au lithium intégrée avec 4 heures d'autonomie, sans besoin d'alimentation externe.
Il peut se connecter avec iPad et iPhone en même temps.
Excellent design, taille réduite facile à transporter.
Hantek iDSO1070A Oscilloscope sans fil 70MHZ
- iPhone/iPad/Android/Windows Oscilloscope, Multi-touch Operation.
- WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.
- Build-in Lithium Battery , no need of External Power. Floating Measurement is available, safe and convenient.
- 70MHz Bandwidth, Real-time Sampling Rate 250MSa/s
- Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.
- Good mechanical design. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved
- Small size which is convenient for traveling.
- Software Support:IOS,Android(Partial function),Win10,Win8, Win7, VISTA, etc.
- More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
- FFT spectrum analyzer
- Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
- The waveform data can be output as EXCEL, BMP, JPG according to time and voltage.
| Model | iDSO1070A | |||
| Bandwidth | 70MHz | |||
| Channel | 2 CH | |||
| Real-time Sampling Rate | 250MSa/s（singal channel）, 125MSa/s（two channels） | |||
| Sampling Mode | Sampli ng, Vmax , Vrms | |||
| Average Sampling | Average waveform, times: 4, 8, 16, 32, 64, 128 | |||
| Memory Depth | 6K | |||
| Rise time | ≤5ns | |||
| Time Base Precision | ±50ppm | |||
| Time Base Range | 45s/div-70%s/div ( 1-2-4 sequences ) | |||
| Input Coupling | DC, AC, GND | |||
| Input Impedance | Resistance: 1MΩ; Capacitance：25pF | |||
| Probe Attenuation Coefficient Setting | 1×, 10×, 100 × , 1000 | |||
| Max Input Voltage | 35Vpk（DC+peak） | |||
| Waveform Interpolation | Step, Linear, Sin(x)/x | |||
| Input Sensitivity | 10mV/div～5V/div | |||
| Vertical Resolution | 8Bit | |||
| Vertical Displacement Range | 10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe; | |||
| 1V ~ 70%V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe | ||||
| Position Range | ±4division | |||
| Low Frequency Response | ≤10Hz（at input BNC） | |||
| DC Gain Accuracy | ±3% | |||
| Bandwidth Limit | 20MHz | |||
| Trigger Mode | Auto, normal, singal | |||
| Trigger Type | Edge, Alternative | |||
| Trigger Precision | ±4division | |||
| Trigger Range | ±4V | |||
| Trigger Sensitivity | 0.02 division | |||
| Trigger Source | CH1, CH2, EXT | |||
| Waveform Signal Process | +,-,x,÷,FFT, invert | |||
| Temperature | Operating: 0℃-40℃; Non-operating: -20℃-60℃ | |||
| Humidity | Below 35℃, ≤90% relative humidity; 35℃-40℃, ≤60% relative humidity | |||
| Cursors Measurement | Cross, Trace, Horizontal, Vertical | |||
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | |||
| Volume | 190mm * 100mm * 35mm | |||
| Weight | 0.7KG | |||
| Accessory | 2 passive probes - PP80 |
|||
iDSO1070A
Fiche technique
- Canaux d'oscilloscope
- 2
- Bande passante de l'oscilloscope
- 70
