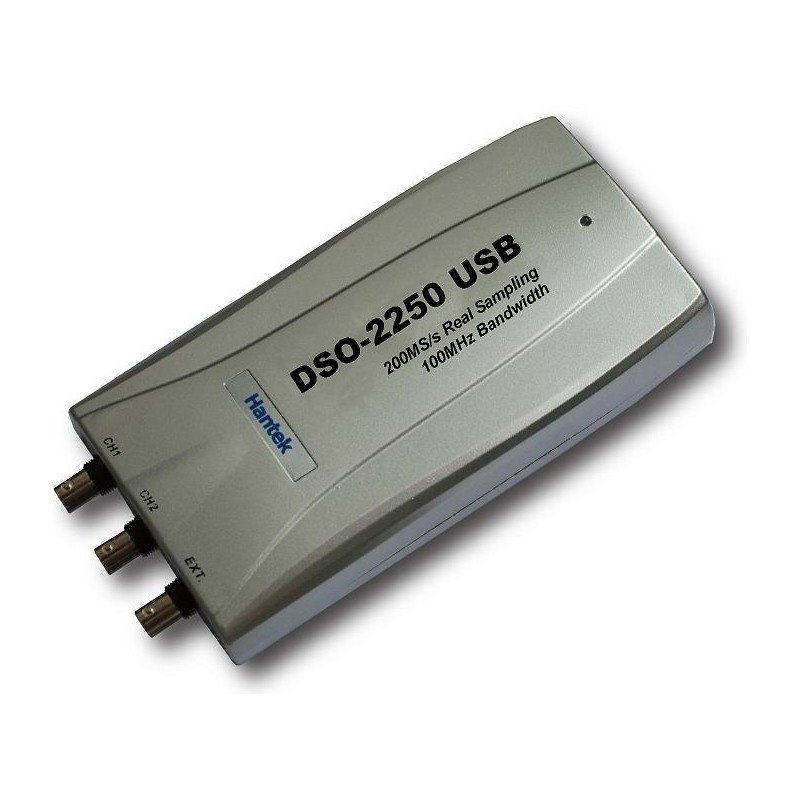

Hantek DSO2250 Oscilloscope USB 100 MHz / 2 canaux

227.81 €
273,37 € TVA INCLUSE

Oscilloscope USB pour PC à 2 canaux.
Bande passante de 100MHZ.
Déclencheur externe
Léger et compact, il transforme n'importe quel PC en oscilloscope complet.
Alimentation USB (Aucune alimentation externe requise).

Quantité
CONSULTER

Hantek DSO2250 Oscilloscope USB 100 MHz / 2 canaux

  • USB2.0 interface, no external power source required, easy to use.
  • be suitable for notebook computerproduct line maintenancebe used easily on business.
  • Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
  • Operating System: Windows 10, Windows 8, Windows7,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA.
  • 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  • Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
  • FFT
  • One computer can connect many DSO, extend channel easily.
  • Labview,VB,VC,Delphi,C++,Builder, SDK Libraries.

Model DSO2090 DSO2150 DSO2250

DSO5200

DSO5200A

Channel 2 2 2 2 2
Bandwidth 40MHz 60MHz 100MHz 200MHz 200MHz
Max. Sample rate 100MS/s 150MS/s 250MS/s 200MS/s 250MS/s
Rising Time 8.8ns 5.8ns 3.5ns 1.7ns 1.7ns
Impedance 1MΩ 25pF
Coupling AC/DC/GND
Vertical resolution 8Bit 9 Bit
Gain range 10mV-5V, 9 Steps
DC accuracy ±3%
Timebase range 4ns-1h, 38 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
EXT. input Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2, EXT
Pre/Post trigger 0-100%
Buffer size 64K 64K 1M 64K 1M
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage
Accessories S/W CD, probes, manual, USB cord
DSO2250

Fiche technique

Canaux d'oscilloscope
2
Bande passante de l'oscilloscope
100
