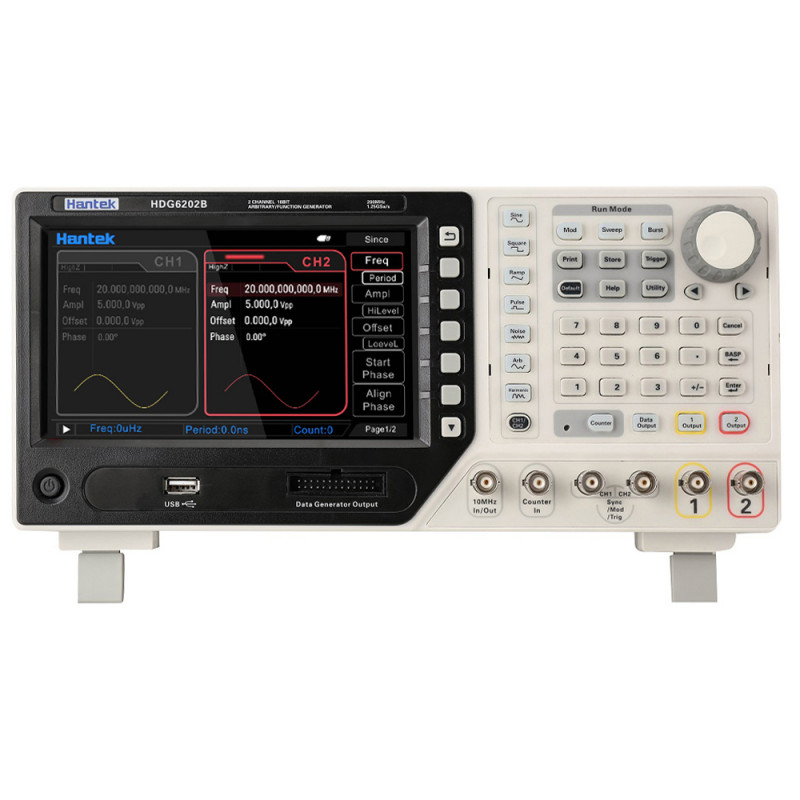

Hantek HDG6202B Générateur de signaux arbitraires / Fonctions 200MHZ
760.5 €
912,60 € TVA INCLUSE
2 canaux de générateur de forme d'onde arbitraire / 200MHZ
Un générateur de pulsion

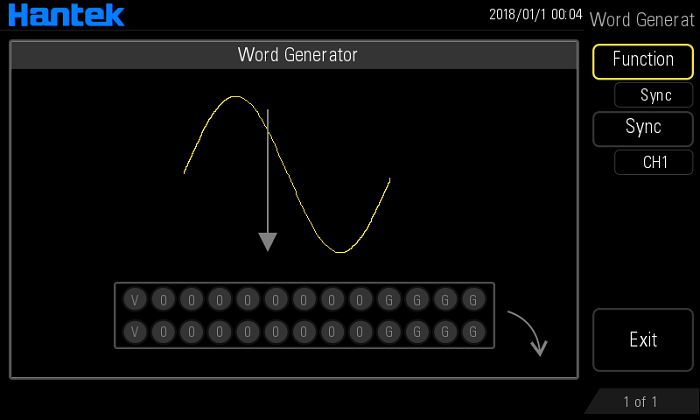

Générateur de mots 16 bits
Cymomètre à 7 chiffres et générateur de fonctions
Signal de sortie stable, précis et à faible distorsion
Plus de 150 formes d'ondes arbitraires intégrées
Interfaces standard compatibles pour un contrôle facile à distance de l'instrument

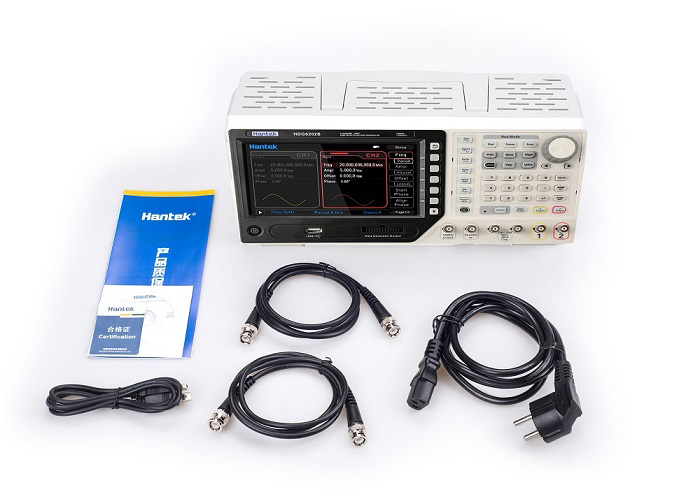

Hantek HDG6202B
Générateur de signaux arbitraires / Fonctions 200MHZ
La série HDG6000B intègre des fonctions multiples comme deux canaux de générateur de forme d'onde arbitraire, générateur d'impulsions, générateur de mots 16 bits, cymomètre à 7 chiffres et générateur de fonctions; Il peut générer et produire des signaux de distorsion stables, précis et faibles; Intégré plus de 150 formes d'onde arbitraires de type, ce qui est facile à simuler divers signaux; Son grand écran, sa conception d'interface conviviale et sa disposition de clavier sont pratiques à utiliser; Les interfaces de configuration standard riches permettent facilement de contrôler à distance l'instrument.

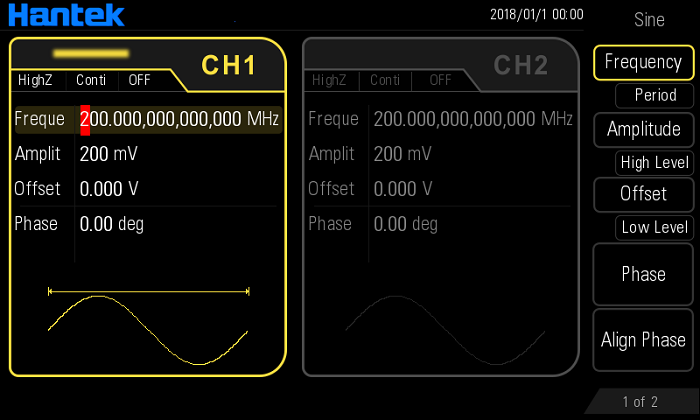

* 2 canaux / plage de fréquences de sortie: 1uHz ~ 200MHz
* Taux d'échantillonnage jusqu'à 1,25 GSa / s, résolution verticale de 16 bits pour assurer la précision de la forme d'onde de sortie
* Jusqu'à 64M de profondeur de mémoire, assurant une meilleure création de détails de forme d'onde
* Grand écran d'affichage clair (écran couleur LCD de 7,0 pouces, résolution jusqu'à 800x640), l'interface utilisateur est claire et intuitive

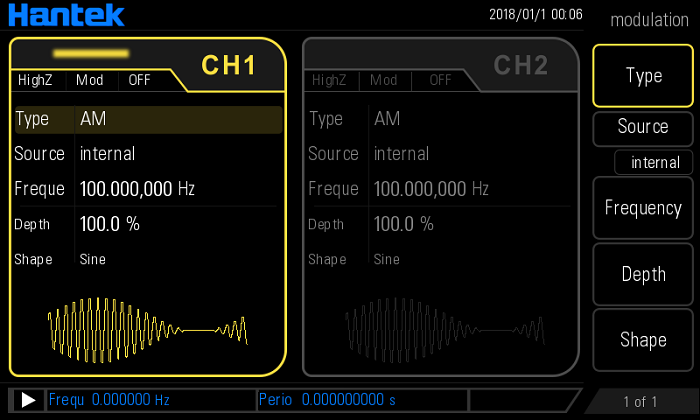

* Un riche ensemble de fonctions de modulation, prend en charge AM, FM, PM, 2ASK, 2FSK, 2PSK et PWM, etc.
* Résolution de fréquence 1uHz; amplitude de sortie minimale de 2 mv

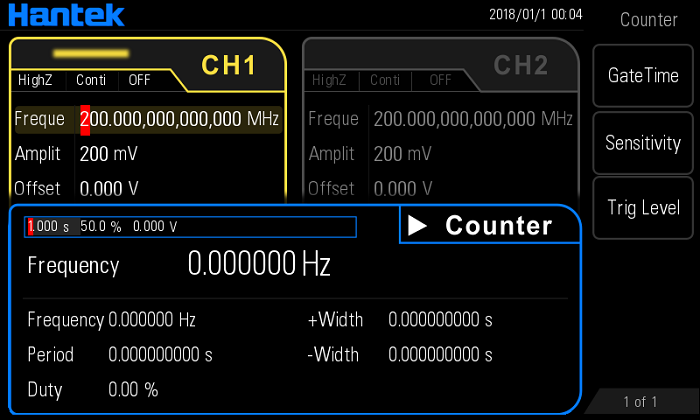

* Cymomètre haute résolution 200 MHz intégré à 7 chiffres; avec cymomètre optionnel plus performant
* Interface de communication standard: hôte USB, périphérique USB

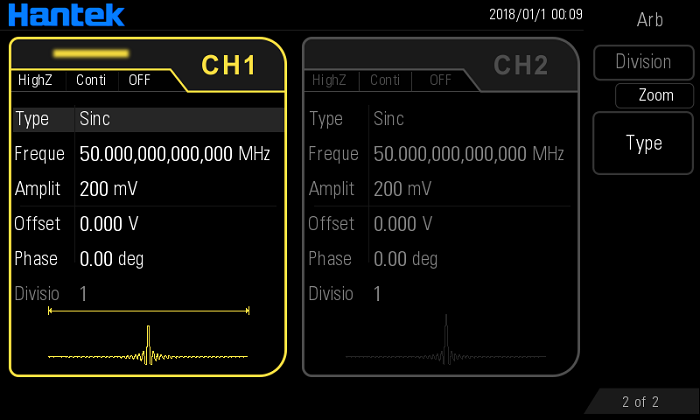

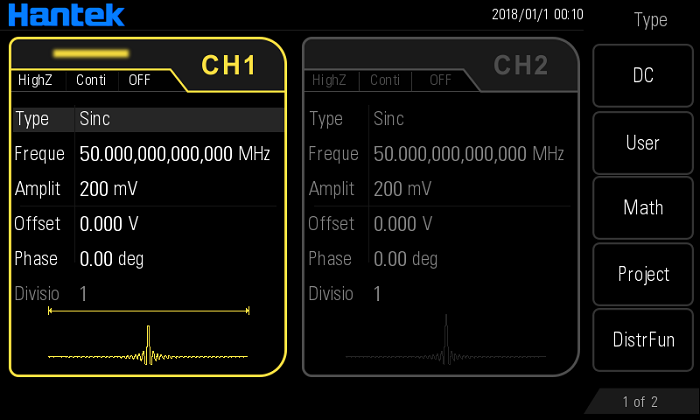

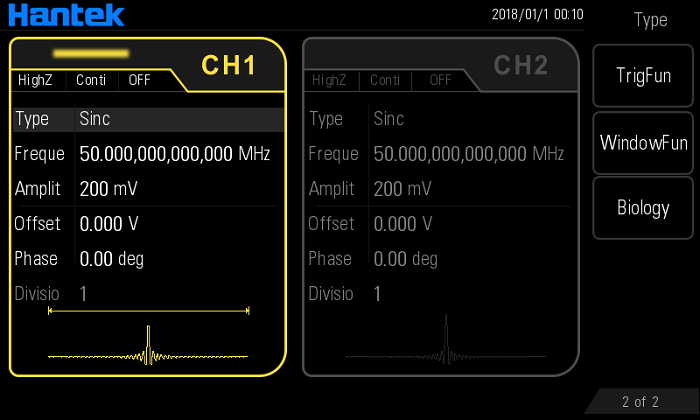

* Intégré plus de 150 formes d'onde arbitraires, y compris élévation exponentielle, chute exponentielle, signal ECG, gaussien, semi-positif, Lorentz, multi-fréquence bicolore, tension CC, etc.
HDG6000B
| Model | HDG6202B | HDG6162B | HDG6112B | HDG6082B |
| Main Feature | ||||
| Channel | 2 | 2 | 2 | 2 |
| Waveform Length | 64M | |||
| Frequency Range | 200MHz | 160MHz | 110MHz | 80MHz |
| Sampling Rate | 1.25GSa/s | |||
| Voltage Resolution | 16 Bit | |||
| Digit Output Mode | 16 channels output | |||
| Waveform | ||||
| Standard Waveform | sine, square, triangle, pulse, noise, harmonic | |||
| Arb. Waveform | More than 150 kinds: index rise, exponential decline, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc. | |||
| Frequency Characteristics | ||||
| Sine | 1uHz~200MHz | 1uHz~160MHz | 1uHz~110MHz | 1uHz~80MHz |
| Square | 1uHz~60MHz | 1uHz~50MHz | 1uHz~40MHz | 1uHz~35MHz |
| Pulse | 1uHz~50MHz | 1uHz~40MHz | 1uHz~25MHz | 1uHz~20MHz |
| Triangle | 1uHz~5MHz | 1uHz~4MHz | 1uHz~3MHz | 1uHz~2MHz |
| White Noise | 120MHz | 120MHz | 110MHz | 80MHz |
| Harmonic | 1uHz~100MHz | 1uHz~80MHz | 1uHz~55MHz | 1uHz~40MHz |
| Arbitrary | 1uHz~50MHz | 1uHz~40MHz | 1uHz~25MHz | 1uHz~15MHz |
| Resolution | 1uHz | |||
| Accuracy | ±2ppm, 18~28℃ | |||
| Sine Spectrum Purity | ||||
| Harmonic Distortion | Typical (0dBm) | |||
| DC-1MHz: <-60dBc | ||||
| 1MHz-10MHz: <-55dBc | ||||
| 10MHz-100MHz: <-50dBc | ||||
| 100MHz-160MHz: <-40dBc | ||||
| THD (Total Harmonic Distortion) | <0.1% (10Hz-20kHz, 0dBm) | |||
| Spurious Signal (Non-harmonic) | Typical (0dBm) | |||
| ≤10MHz: <-65dBc | ||||
| >10MHz: <-65dBc+6dB/octave | ||||
| Phase Noise | Typical (0dBm,10KHz offset) | |||
| 0MHz: ≤-115dBc/Hz | ||||
| Square Characteristics | ||||
| Rising/Falling Time | Typical (1Vpp) | Typical (1Vpp) | Typical (1Vpp) | |
| <8ns | <10ns | <12ns | ||
| Overshoot | Typical (100KHz, 1Vpp) | |||
| <3% | ||||
| Duty Cycle | ≤10MHz: 20.0%~80.0% | |||
| 10MHz~40MHz: 40.0%~60.0% | ||||
| >40MHz: 50.0% (fixed) | ||||
| Asymmetry | 1% +5ns of Period | |||
| Jitter | Typical (1MHz,1Vpp, 50Ω) | |||
| ≤ 5MHz: 2ppm+500ps | ||||
| > 5MHz: 500ps | ||||
| Triangle Characteristics | ||||
| Linear | ≤1% (1KHz, 1Vpp) of Peak Output | |||
| Symmetry | 0%~100% | |||
| Pulse Characteristics | ||||
| Period | 25ns~1Ms | 25ns~1Ms | 40ns~1Ms | 50ns~1Ms |
| Pulse | ≥10ns | ≥10ns | ≥12ns | ≥15ns |
| Rising/Falling Time | ≥5ns | ≥6ns | ≥8ns | ≥10ns |
| Overshoot | <3% (1Vpp) | |||
| Jitter | Typical (1MHz, 1Vpp, 50Ω) | |||
| ≤ 5MHz 2ppm+500ps | ||||
| > 5MHz 500ps | ||||
| Arbitrary Characteristics | ||||
| Waveform Length | 64M | |||
| Vertical Resolution | 16 Bit | |||
| Sampling Rate | 1.25GSa/s | |||
| Rising/Falling Time | Typical (1Vpp): <6ns | |||
| Jitter | Typical (1MHz, 1Vpp, 50Ω) | |||
| ≤ 5MHz 2ppm+500ps | ||||
| > 5MHz 500ps | ||||
| Harmonic Output Characteristics | ||||
| Harmonic Times | ≤16 times | |||
| Harmonic Type | Even harmonics, odd harmonics, sequential harmonics | |||
| Harmonic Amplitude | Each harmonic amplitude can be set | |||
| Harmonic Phase | Each harmonic phase can be set | |||
| Amplitude Characteristics ( 50ΩTermination) | ||||
| Range | ≤20MHz: 1mVpp ~ 10Vpp | |||
| ≤80MHz: 1mVpp ~ 5Vpp | ||||
| ≤110MHz:1mVpp ~ 2.5Vpp | ||||
| ≤160MHz:1mVpp ~ 1Vpp | ||||
| ≤200MHz:1mVpp ~ 0.5Vpp | ||||
| Accuracy | 1KHz Sine, 0V offset (±|1%±2mVpp| of setting value) | |||
| Amplitude flatness (relative to 1 kHz sine wave, 500 mVpp, 50 Ω) | ≤1MHz: ±0.1dB | ≤1MHz: ±0.1dB | ≤1MHz: ±0.1dB | ≤1MHz: ±0.1dB |
| ≤60MHz: ±0.2dB | ≤60MHz: ±0.2dB | ≤60MHz: ±0.2dB | ≤60MHz: ±0.2dB | |
| ≤100MHz: ±0.4dB | ≤100MHz: ±0.4dB | ≤100MHz: ±0.4dB | ||
| ≤160MHz: ±0.8dB | ≤160MHz: ±0.8dB | |||
| ≤200MHz: ±1.2dB | ||||
| Unit | Vpp, mVpp, Vrms | |||
| Resolution | 1mV | |||
| Impedance | 50Ω | |||
| Offset Characteristics (50Ω termination) | ||||
| Range | |Voltset| < Vmax – Vpp/2 | |||
| Accuracy | ± (1% of setting + 5mV + 0.5% of amplitude) | |||
| ± ( |1% + 5mV| of setting value + 0.5% of amplitude) | ||||
| Modulation Characteristics | ||||
| Modulation Type | AM, FM, PM, 2ASK, 2FSK, 2PSK, BPSK, PWM | |||
| AM | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, Square, Triangle, White Noise, Arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| Modulation Depth | 0%~120% | |||
| FM | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, Square, Triangle, White Noise, Arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| PM | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, Square, Triangle, White Noise, Arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| Phase Deviation | 0° to 360° | |||
| 2ASK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external | |||
| Modulation Wave | 50% duty cycle square wave | |||
| Modulation Frequency | 2mHz~1MHz | |||
| 2FSK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external | |||
| Modulation Wave | 50% duty cycle square wave | |||
| Modulation Frequency | 2mHz~1MHz | |||
| 2PSK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external | |||
| Modulation Wave | 50% duty cycle square wave | |||
| Modulation Frequency | 2mHz~1MHz | |||
| BPSK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal | |||
| Modulation Wave | 01 yard | |||
| Modulation Frequency | 2mHz~1MHz | |||
| PWM | ||||
| Carrier Wave | Square | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, square, sawtooth, noise, arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| Width Deviation | 0% to 100% of Pulse Width | |||
| 0% to 100% of the pulse width | ||||
| External Modulation Input | ||||
| Max. Input Range | 75mVRMS to ±2.5Vac+dc | |||
| Input Bandwidth | 10MHz | |||
| Input Impedance | 1KΩ | |||
| Sweep Characteristics | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Type | Linear | |||
| Direction | Top | |||
| Sweep | 1ms to 50Ks | |||
| Hold/return Time | 1ms to 50Ks | |||
| Trigger Source | Internal, external, manual | |||
| Mark | Falling edge of the sync signal (programmable) | |||

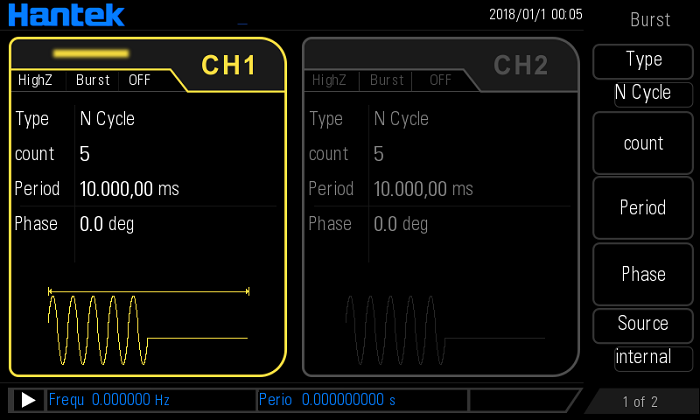

| Burst Characteristics | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Carrier Frequency | 2mHz to 100MHz | 2mHz to 100MHz | 2mHz to 80MHz | |
| Pulse Count | 1 to 2000 000 000 | |||
| Start/Stop Phase | 0° to 360° | |||
| Internal Cycle | 2μs to 500s | |||
| Gating Source | External Trigger | |||
| Trigger Source | Internal, external, manual | |||
| Cymometer | ||||
| Measurement Function | Frequency, period, positive/negative pulse width, duty cycle | |||
| Frequency Resolution | 7 bits/s | |||
| Frequency Range | 1uHz~200MHz | |||
| Input Level | TTL level | |||
| Gate Time | 10ms~16s | |||
| Voltage Range and Sensitivity (Non-modulated Signal) | ||||
| DC Coupling | DC Offset Range | ±1.5VDC | ||
| 1μHz to 100MHz | 50mVRMS to ±2.5Vac+dc | |||
| 100MHz to 200MHz | 100mVRMS to ±2.5Vac+dc | |||
| Pulse Width and Duty Cycle Measurement | ||||
| Frequency and Amplitude Range | 1μHz to 25MHz | 50mVRMS to ±2.5Vac+dc | ||
| Pulse Width | Min. Pulse Width | ≥100ns | ||
| Pulse Width Resolution | 8ns | |||
| Duty Cycle | Measuring range (display) | 0% to 100% | ||
| Input Characteristic | ||||
| Input Signal Range | Destruction Voltage | ±5Vac+dc | Input Impedance =500Ω | |
| Input Trigger | Trigger Level Range | -2.5V to +2.5V | ||
| Trigger Sensitivity Range | 0% (140mV hysteresis voltage) to 100% (2mV hysteresis voltage) | |||
| Trigger characteristics | ||||
| Trigger Input | ||||
| Level | TTL-compatible | |||
| Slope | Rise or fall (optional) | |||
| Pulse Width | >50ns | |||
| Reference Clock | ||||
| External Reference Input | ||||
| Lock Range | 10MHz±50Hz | |||
| Level | 2.5Vpp to 5Vpp | |||
| Lock Time | <2s | |||
| Input Impedance | 5kΩ, AC Coupling | |||
| Internal Reference Input | ||||
| Frequency | 10MHz ± 50Hz | |||
| Level | 3.3Vpp | |||
| Output Impedance | 5kΩ, AC Coupling | |||
| Synchronous Output | ||||
| Level | TTL-compatible | |||
| Impedance | 50Ω, nominal value | |||
| General Characteristics | ||||
| Interface | HDG6000B: USB Host, USB Device, Optional RS232 port | |||
| HDG6000C: USB Host, USB Device, LAN port, Wi-Fi, Touch Screen, Optional RS232 port | ||||
| Display | 7 inch, 64K color, TFT LCD Screen, 800*640 | |||
| Voltage | 100-240V, 45Hz - 440Hz | |||
| Power | <50W | |||
| Environment | ||||
| Temperature Range | Operation: 10 ° C to 40 ° C Non-operation: -20 ° C to 60 ° C | |||
| Cooling Method | Fan forced cooling | |||
| Humidity Range | Less than 35 ° C: ≤ 90% relative humidity 35 ° C to 40 ° C: ≤ 60% relative humidity | |||
| Altitude | Operation: 3000 meters or less; Non-operation: 15000 meters or less | |||
| Mechanical Specifications | ||||
| Dimension | 318 x 110 x 150mm (L x W x H) | |||
| Weight | 3KG | |||
HDG6202B
Fiche technique
- Serie
- HDG6000B
- Générateur de signal / Fonctions
- Oui
- Canaux de générateur
- 2
